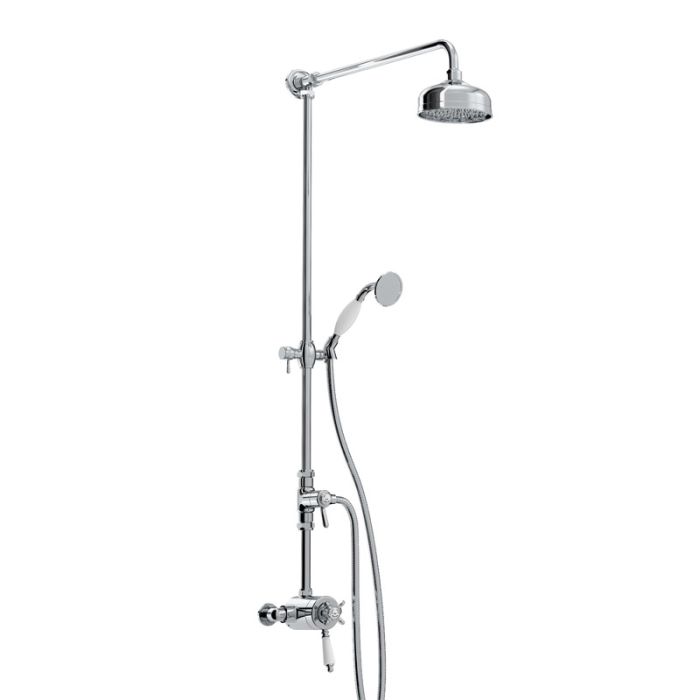

1901 Thermostatic Exposed Dual Control Shower Valve Diverter Riser Kit

Combining modern styling with thermostatic temperature control, the Bristan 1901 Thermostatic Exposed Dual Control Shower Valve Diverter Riser Kit (N2CSHXDIVC) is designed for reliable everyday showering performance.

Specifications

- Measurements of valve: (depth) 140mm (lever length) 85mmm (width) 136-158mm
- Riser Rail: (height) 1385mm
- Shower Arm: (length)( 555mm (shower head) 150mm
- Finish/Colour: Chrome Plated
- Main Construction Material: Brass
- No of Controls: 1
- Shower Type: Single Control
- Valve/Cartridge Type: Thermostatic Cartridge
- Maximum Hot Water Supply Temperature OC: 65
- Maximum Static Pressure: (bar) 10
- Plumbing System Suitability: All, preferably balanced
- Minimum Dynamic Pressure: 0.2 bar
- Connection Inlet: 15mm Compression Connections
- Connection Outlet: G 1/2"
- Isolation Valve Included: No
- Check Valve Included: Yes
- Chrome plated to BS EN 248:2002
- Supplied with 2x 8 litres per minute flow regulators
- Adjustable inlet centres mean you can use existing pipework with centres measuring anything between 136mm and 158mm.
- Factory fitted regulators means this is a water saving shower
- Matching taps available
- Traditional shower kit with external diverter, shower rose, rigid riser and handset
- Single control handle
- Single control handle
- Range: 1901
- WRAS Product Certifications
- Lifetime Guarantee

Features

- 15mm inlet connections
- Easy replacement with adjustable inlets so you can use on existing pipework centres between 136mm and 158mm
- Thermostatic cartridge with preset temperature stop at 42ﾰC
- Traditional shower kit with external diverter, shower rose, rigid riser and handset
- Factory fitted flow regulators means this is a water saving "Eco" shower

Flow Rates Fixed Head (l/min)

- 0.2 bar - 5.6 (l/min)
- 0.5 bar - 10.0 (l/min)
- 1 bar - 15.8 (l/min)
- 2 bar - 22.9 (l/min)
- 3 bar - 24.5 (l/min)
- 5 bar - 31.6 (l/min)

Flow Rates Fixed Head Flow Limiters (l/min)

- 0.2 bar - n/a(l/min)
- 0.5 bar - 9 (l/min)
- 1 bar - 10.9 (l/min)
- 2 bar - 11.3 (l/min)
- 3 bar - 11.6 (l/min)
- 5 bar - 9.7 (l/min)

Flow Rates Handset (l/min)

- 0.2 bar - 3.9 (l/min)
- 0.5 bar - 7.2 (l/min)
- 1 bar - 10.9 (l/min)
- 2 bar - 15.6 (l/min)
- 3 bar - 17.6 (l/min)
- 5 bar - 22.7 (l/min)

 Flow Rates Handset Flow Limiters (l/min)

- 0.2 bar - n/a(l/min)
- 0.5 bar - 6.8 (l/min)
- 1 bar - 9.9 (l/min)
- 2 bar - 10.8 (l/min)
- 3 bar - 11.3 (l/min)
- 5 bar - 9.9 (l/min)
