1901 Thermostatic Exposed Dual Control Shower Valve Top Outlet Chrome
Special Price
£390.75
Regular Price
£521.00
SKU
N2CSHXTVOC
Taking an authentic, traditional shower design into the 21st century, Bristan lovingly recreated this 1901 shower

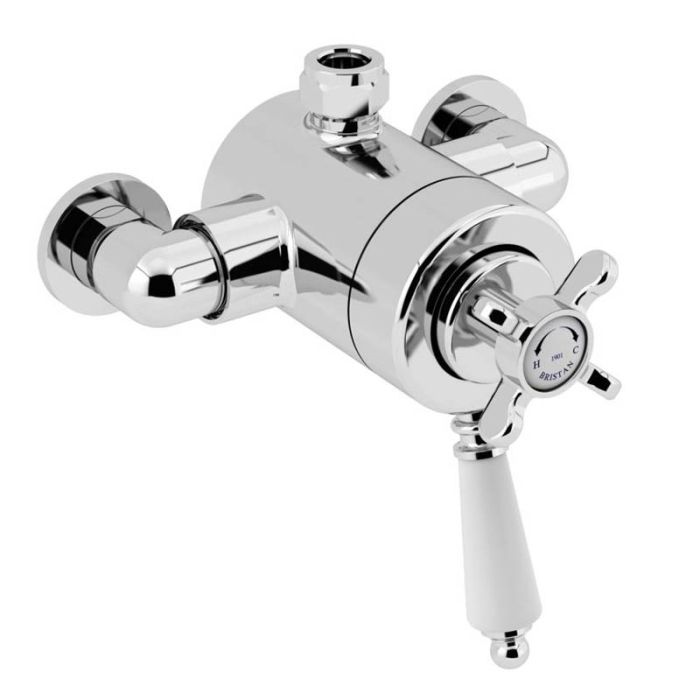

The Bristan 1901 Thermostatic Exposed Dual Control Shower Valve Top Outlet Chrome (N2CSHXTVOC) draws inspiration from traditional Victorian design, making it ideal for period properties and classic bathroom interiors. Built to withstand the demands of everyday use and backed by a Lifetime Guarantee.
Specifications
- Measurements: (width) 136-158mm, (depth) 139mm - Finish/Colour: Chrome - Main Construction Material: Brass No of Controls: 2 - Handle Type: Crosshead - Shower Type: Exposed - Shower Head Type: None - Valve/Cartridge Type: Concentric Cartridge - Maximum Hot Water Supply Temperature OC: 65 - Maximum Dynamic Pressure (bar): 5 - Plumbing System Suitability: Suitable for all plumbing systems - Minimum Dynamic Pressure (bar): Min: 0.2 bar, Max: 5 bar - Connection Inlet: 15mm Compression - Connection Outlet: 15mm Compression - Isolation Valve Included: No - Check Valve Included: No - Range: 1901 - Lifetime GuaranteeFeatures
- 15mm inlet connections - Easy replacement with adjustable inlets so you can use on existing pipework centres between 136mm and 158mm - Thermostatic cartridge with preset temperature stop at 42ﾰC - Supplied with 2 x 8L/min flow regulators - Top outletFlow Rates with Folow Limiters (l/min)
- 0.2 bar - 7.5 (l/min) - 0.5 bar - 11.9 (l/min) - 1 bar - 13.4 (l/min) - 2 bar - 13.2 (l/min) - 3 bar - 13.1 (l/min) - 5 bar - 11.4 (l/min)Flow Rates without Flow Limiters
- 0.2 bar - 7.5 (l/min) - 0.5 bar - 14.3 (l/min) - 1 bar - 20.7 (l/min) - 2 bar - 30.9 (l/min) - 3 bar - 37.9 (l/min) - 5 bar - 48.9 (l/min)| Basic Dimensions | 128mm Projection, 136-158mm Adjustable Pipe Centres |
|---|---|
| Approvals | WRAS Approved |
| EAN Number | 5014868044071 |
| Guarantee | Lifetime |
| Pipe Centres | Variable between 136 - 158mm |
| Manufacturer | Bristan |
| Return period | 14 days |
