1901 Thermostatic Exposed Dual Control Shower Valve Bottom Outlet Chrome

Skip to the beginning of the images gallery

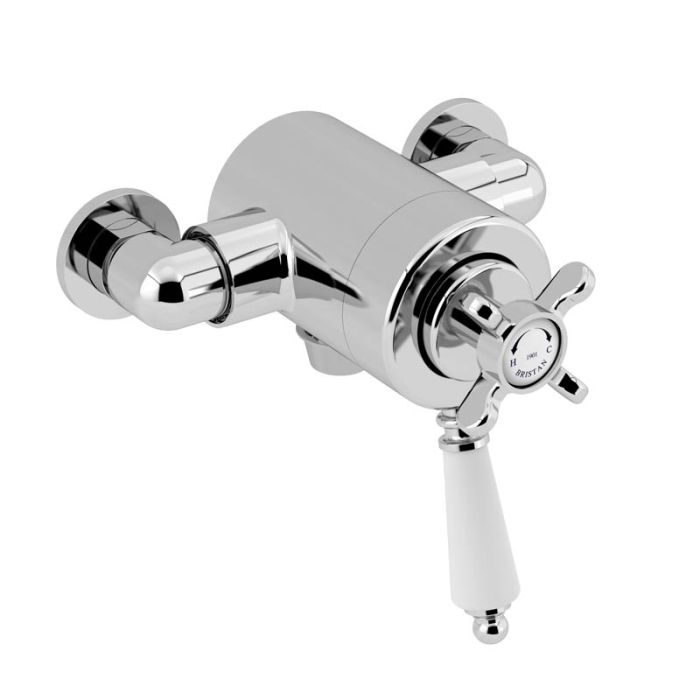

1901 Thermostatic Exposed Dual Shower with Bottom Outlet Chrome

Name: 1901 Thermostatic Exposed Dual Shower with Bottom Outlet Chrome
SKU: N2CSHXVOC
Price: 371.25 GBP
Availability: InStock

Special Price £371.25 Regular Price £495.00

SKU

N2CSHXVOC

Taking an authentic, traditional shower design into the 21st century, Bristan lovingly recreated this 1901 shower

View All 1901 Bathroom Taps

View All 1901 Showers

View All 1901 Accessories

Details

More Information

Questions & Answers

Delivery Charges

The Bristan 1901 Thermostatic Exposed Dual Shower with Bottom Outlet Chrome (N2CSHXVOC) draws inspiration from traditional Victorian design, making it ideal for period properties and classic bathroom interiors. Designed for long-term reliability and supported by Bristan's Lifetime Guarantee.

Specifications

- Measurements: (width) 136-158mm, (depth) 128mm - Outlet to wall 31mm - Finish/Colour: Chrome - Main Construction Material: Brass No of Controls: 2 - Handle Type: Crosshead - Shower Type: Exposed - Shower Head Type: None - Valve/Cartridge Type: Thermostatic Cartridge - Maximum Hot Water Supply Temperature OC: 65 - Maximum Dynamic Pressure (bar): 10 - Plumbing System Suitability: Ideally balanced - Minimum Dynamic Pressure (bar): Min: 0.2 bar, Max: 5.0 bar - Connection Inlet: 1/2" - Connection Outlet: 1/2" - Isolation Valve Included: No - Check Valve Included: No - Range: 1901 - Lifetime Guarantee - WRAS Product Certification

Features

- 15mm inlet connections - Easy replacement with adjustable inlets so you can use on existing pipework centres between 136mm and 158mm - Thermostatic cartridge with preset temperature stop at 42ﾰC - Supplied with 2 x 8L/min flow regulators - Bottom outlet

Flow Rates (l/min)

- 0.2 bar - 8.5 (l/min) - 0.5 bar - 11.8 (l/min) - 1 bar - 14.1 (l/min) - 2 bar - 13.8 (l/min) - 3 bar - 13.6 (l/min) - 5 bar - 10.6 (l/min)

More Information
Basic Dimensions	128mm Projection, 136-158mm Adjustable Pipe Centres
Approvals	WRAS Approved
EAN Number	5014868043159
Guarantee	Lifetime
Pipe Centres	Variable between 136 - 158mm
Manufacturer	Bristan
Return period	14 days
