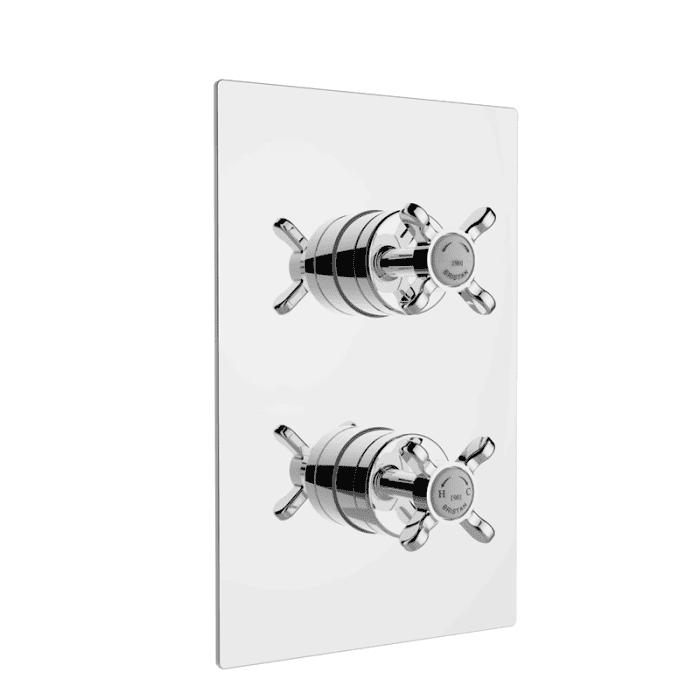

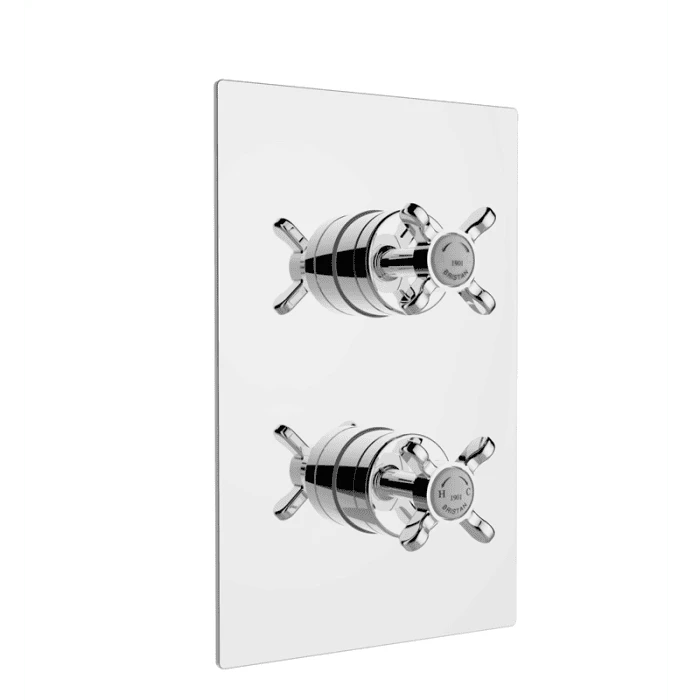

1901 Recessed Shower with Diverter Chrome

Specifications

• Measurements: (height) 255mm (width) 165mm (pipe centres) 150mm
• Distance from handle to backplate 30mm
• Finish/Colour: Chrome Plated
• Main Construction Material: Brass
• No of Controls: 2
• Shower Type: Dual Control
• Valve/Cartridge Type: Thermostatic Cartridge
• Maximum Hot Water Supply Temperature OC: 65
• Maximum Static Pressure: (bar) 10
• Plumbing System Suitability: All, preferably balanced
• Minimum Dynamic Pressure: 0.2 bar
• Connection Inlet: 15mm Compression Connections
• Isolation Valve Included: No
• Check Valve Included: Yes
• 5 Year Guarantee
• Range: 1901
• WRAS Product Certification

Features

• 15mm inlet connections
• This shower valve has been designed to fit in any UK wall cavity and therefore only needs a 35mm deep cavity space
• Fitting depth including plasterboard and tiles is 45mm - 75mm
• Minimum cold water supply temperature is 4°c
• Maximum hot water supply temperature is 6

Flow Rates (l/min)

Flow Rates Outlet 1 (l/min)

• 0.2 bar - 5 (l/min)
• 0.5 bar - 9.2 (l/min)
• 1 bar - 13.6 (l/min)
• 2 bar - 19.7 (l/min)
• 3 bar - 24.3 (l/min)
• 5 bar - 31.5  (l/min)

Flow Rates Outlet 1 Flow Limiters (l/min)

• 0.2 bar -  3.9(l/min)
• 0.5 bar - 7 (l/min)
• 1 bar - 9.4 (l/min)
• 2 bar - 11.1 (l/min)
• 3 bar - 11.2 (l/min)
• 5 bar - 12.2  (l/min)



Flow Rates Outlet 2 (l/min)

• 0.2 bar -  5(l/min)
• 0.5 bar - 9.2 (l/min)
• 1 bar - 13.9 (l/min)
• 2 bar - 19.7 (l/min)
• 3 bar - 24.3 (l/min)
• 5 bar - 31.5  (l/min)

 Flow Rates Outlet 2 Flow Limiters (l/min)

• 0.2 bar -  3.9 (l/min)
• 0.5 bar - 7 (l/min)
• 1 bar - 9.4 (l/min)
• 2 bar - 11.1 (l/min)
• 3 bar - 11.2 (l/min)
• 5 bar - 12.2  (l/min)
