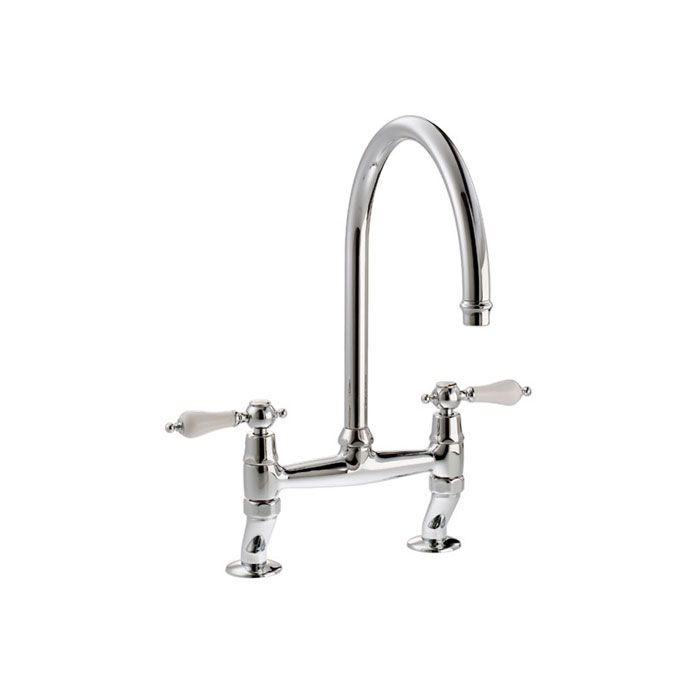

Ludlow Bridge Kitchen Mixer Tap Chrome
The Abode kitchen mixer taps offer an extensive choice of designs and finishes ensuring there is something to suit all tastes and kitchens. The traditionally inspired kitchen taps recreate old age design influences cleverly paired with the latest modern day engineering technology.
This Ludlow dual flow mixer tap chrome has twin lever handles with ceramic disc valves for a quarter turn control.
The total height of this tap is 400mm, the height to the underside of the spout is 235mm and the projection from centre of the body to centre of the spout is 185mm. The inlet centres are adjustable between 130mm and 230mm. It is supplied complete with tap connectors and all fittings for fixing to your kitchen sink or worktop. If you are fitting this kitchen tap to a worktop we recommend two 25mm diameter holes are drilled.This mixertap is designed to fit through a worksurface up to 80mm deep, the doglegged inlet pipes can be rotated to adjust distance between leg centers. The Abode Ludlow bridge sink mixer tap is suitable for both low and high pressure water systems and requires a minimum operating pressure of 0.2bar. Guaranteed for 5 years.
| Basic Dimensions | 330mm height and 185mm projection from centre of the body to centre of the spout. |
|---|---|
| Approvals | WRAS Approved |
| EAN Number | 5060048380286 |
| Guarantee | 5 Years |
| Mounting Hole Size | 2 No: 25mm Diameter Holes |
| Pipe Centres | Variable between 130 - 230mm |
| Manufacturer | Abode |
| Valve Technology | Ceramic Disc |
| Return period | 14 days |
