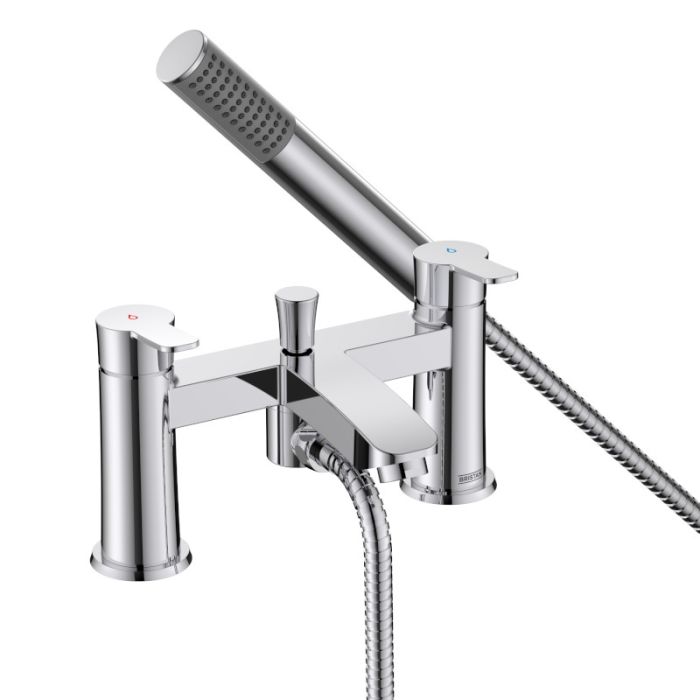

Appeal Bath Shower Mixer Chrome

Specifications

• Measurements: (Height) 135mm (Width) 230mm (Depth) 140mm
• Spout Dimensions: (Projection) 105mm, (Height) 65mm
• Pipe Centres: 180mm
• Base Diameter: 50mm
• Connection Inlet: 3/4” BSP
• Connection Outlet: Housed M24 Aerator
• Lever: Twin lever handle
• Finish: Chrome
• Material: Solid brass
• Valve/Cartridge Type: 3/4” Short Stem Ceramic Disc Valve
• Plumbing System Requirements: Suitable for all plumbing systems
• Minimum Operating Pressure: 0.3 bar (Low pressure)
• Manufacturer: Bristan
• Range: Appeal
• 10-year parts and 1 year labour guarantee for peace of mind.

Features

• Long life 1/4 turn ceramic disc valves for added durability and smooth control
• Robust metal fixing nut to secure the tap in place reducing the risk of loosening over time
• On-trend brushed brass finish to make a statement in your bathroom
• Rub clean handset - limescale and debris build-up is quickly and easily removed by rubbing a finger or a cloth over the nozzles
• Also available in brass and black
• Co-ordinating Bathroom taps available.

Flow Rates (l/min)

• 0.3 bar - 13.7 (l/min)
• 0.5 bar - 18.8 (l/min)
• 1 bar - 27 (l/min)
• 2 bar - 38 (l/min)
• 3 bar - 46.5 (l/min)
• 5 bar - 60 (l/min)
