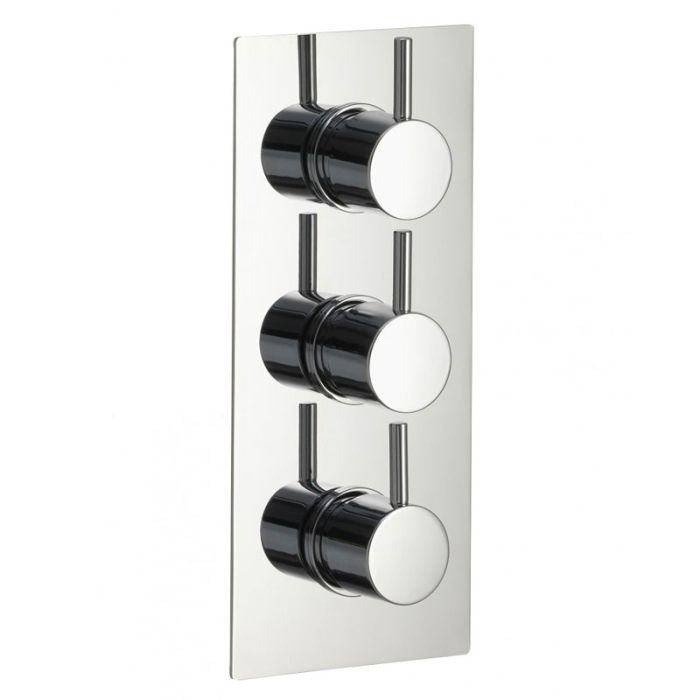

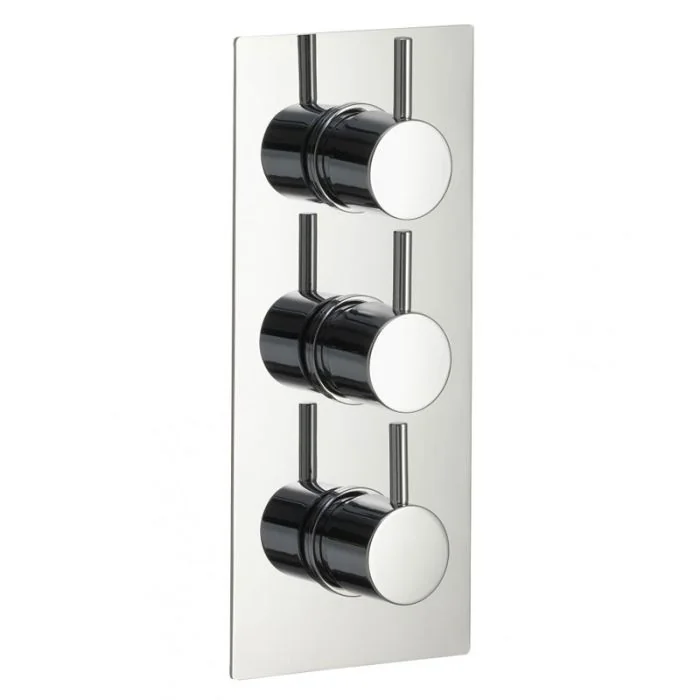

Arco 3 Knob Twin Outlet Thermostatic Shower Valve

The Imex Arco 3 Knob Twin Outlet Thermostatic Shower Valve (6003) is a thermostatic shower valve designed for coordinated shower installations. Finished in Chrome, it combines coordinated Imex shower styling with practical everyday shower performance.

Product Benefits:
- Thermostatic control helps maintain a safe, stable shower temperature
- Designed for reliable shower operation
- Brass construction where specified
- Chrome finish

Product Specification:
- Insertion depth 80mm min/ 100mm max
- Brass valve dimensions - 140mm deep (front of handles to rear of body) x 239mm high
- Plate dimentions - 265mm high x 100mm wide
- Inlet and outlet connections ﾽ" female threads
- Fully serviceable via front access
- Easy access, easy clean cartridge
- Recessed Valve
- Dual Outlet
- Chrome Plated
- Thermostatic Valve
- 3 handle valve thermostat in the middle
- Top and bottom will be on/off cartridge
- Suitable for low and high pressure systems
- Minimum pressure
- 0.2 bar Pressure
- Guarantee - 3 year mechanism / 10 year brassware
- WRAS approved

Flow Rates:
- 0.2 bar - 5.8 l/min
- 0.5 bar - 10 l/min
- 1.0 bar - 14 l/min
- 1.5 bar - 17.2 l/min
- 2.0 bar - 20.9 l/min
- 2.5 bar - 23.2 l/min
- 3.0 bar - 25.8 l/min
