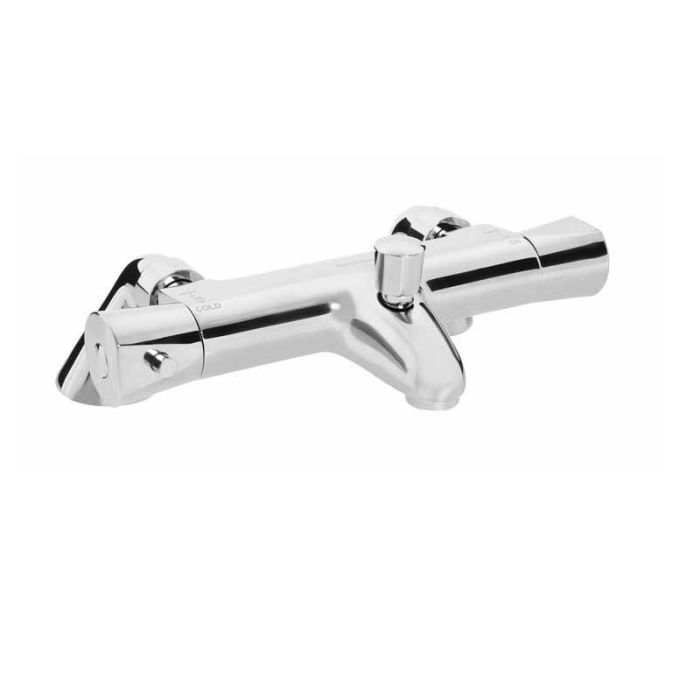

Artisan Thermostatic Bath Shower Mixer

Specifications

• Measurements: (height) 80mm (width) 260mm (fixed inlet centre) 180mm (projection) 145mm
• Product Type: Bath Shower Mixer Main
• Construction Material: Brass
• Finish: Chrome
• Mount Type: Deck Mounted
• Handle Type: Oval Handles
• Connection Inlet: 3/4”BSP
• Connection Outlet: G1/2”
• Number of Tap Holes: 2
• Valve/Cartridge Type: ½" CD Valve & Thermostatic Cartridge
• Plumbing System Requirements: Nominally Balanced Supply Pressures Only
• Minimum Dynamic Pressure: 0.5 bar
• Maximum Dynamic Pressure: 5.0 Bar
• Maximum Hot Water Temperature: °C 80
• Maximum Static Pressure: (bar) 10
• Flow Type: Single Flow
• Thermostatic temperature control for bath and shower functions
• Suitable for medium and high pressure
• Shower kit not supplied. Please see showers section for selection
• Approvals: WRAS Approved
• Guarantee: 10 years
• Range: Artisan

Features

• Thermostatic control for bath and shower
• Dual control - flow and temperature are controlled separately
• Pre-set maximum temperature at 38°c can be overidden by the user
• Minimum working pressure of 0.5 bar
• Supplied without shower kit

Flow Rates (l/min)

• 0.5 bar - 11.3 (l/min)
• 1 bar - 16.1 (l/min)
• 2 bar - 22.7 (l/min)
• 3 bar - 27.9 (l/min)
• 5 bar - 36 (l/min)
