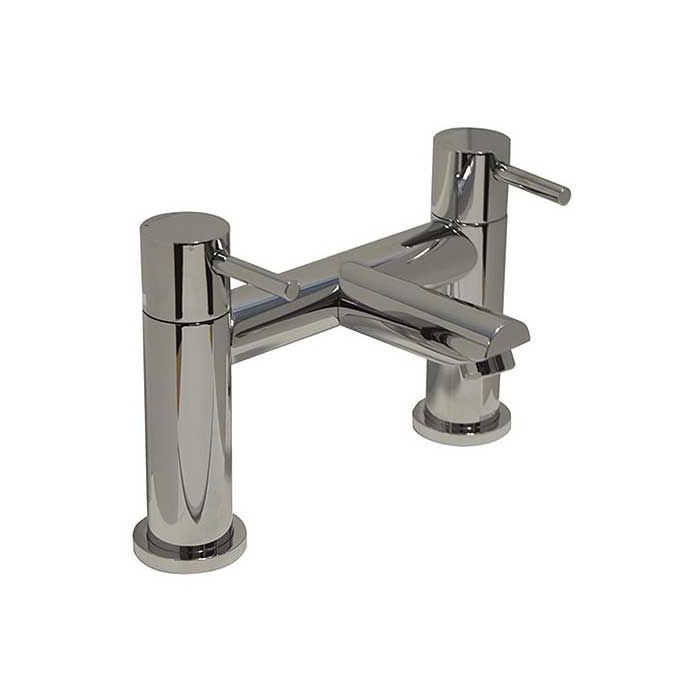

Blitz Bath Filler
Special Price
£147.00
Regular Price
£196.00
SKU
BTZBFC
Bristan Blitz Filler
Specification
- Measurements: (height) 150mm (width) 230mm (depth) 130mm
- Spout Measurements: (projection) 95mm (height) 85mm
- Base Diameter: (50mm)
- Product Type: Bathroom Tap
- Main Construction Material: Brass
- Mount Type: Deck
- Handle Type: Lever
- Connection Inlet: 3/4” BSP
- Connection Outlet: M24 Male Flow Straightener
- Number of Tap Holes: 2
- Valve/Cartridge Type: 3/4” Ceramic Disc Valve
- Plumbing System Requirements: Suitable for all plumbing systems, ideally balanced
- Minimum Dynamic Pressure (bar): 0.2 bar
- Maximum Dynamic Pressure (bar): 5.0 bar
- Maximum Hot Water Temperature °C: 65°C
- Maximum Static Pressure (bar): 10 bar
- Flow Type: Single
- Approvals: WRAS Approved
- Guarantee: 10 years
- Range: Blitz
Features
- Long life and easy to use 1/4 turn ceramic disc valves
- Metal back nuts for added durability
- 3/4” valve
Flow Rates (l/min)
- 0.2 bar: 14.3 (l/min)
- 0.5 bar: 22.6 (l/min)
- 1 bar: 31.8 (l/min)
- 2 bar: 44.9 (l/min)
- 3 bar: 55 (l/min)
- 5 bar: 71.1 (l/min)
| Approvals | WRAS Approved |
|---|---|
| Basic Dimensions | 152mm height, 97mm projection |
| EAN Number | 5014868015576 |
| Guarantee | Lifetime |
| Pipe Centres | Fixed at 180mm |
| Manufacturer | Bristan |
| Valve Technology | Ceramic Disc |
| Return period | 14 days |
- UK: £7.98 (Mainland UK Only, excludes some post code - see below)
- Extended Area Deliveries: £17.95 (List of postcodes)
- Isle of Wight and the Isle of Scilly: £17.95
- All IE & BT Post Codes: £17.95
- Republic of Ireland: £17.95
- Channel Islands: £20.82 (we do not charge VAT for shipping to Jersey & Guernsey)
