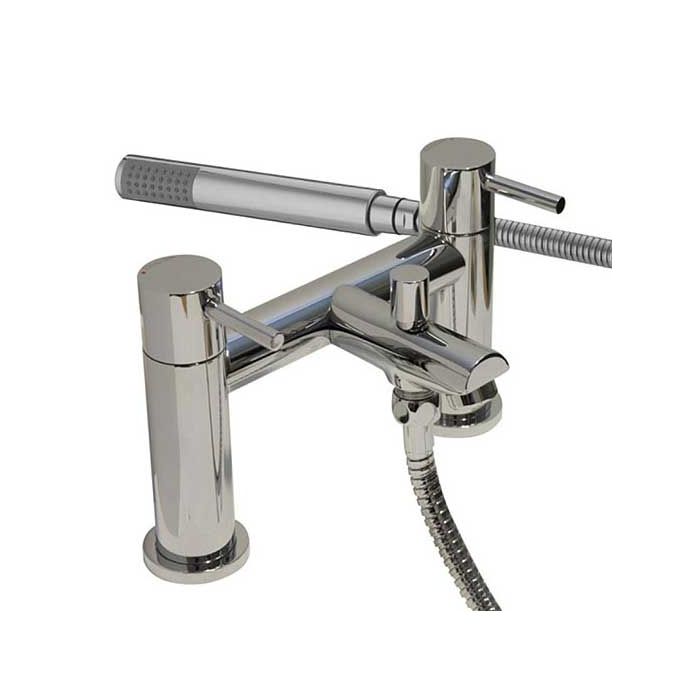

Blitz Bath Shower Mixer

The Bristan Blitz Bath Shower Mixer (BTZBSMC) combines Bristan bathroom brassware styling with the practical function of a bath shower mixer tap. It combines bath filling with a shower handset for flexible bathing and rinsing, making it suitable for bathroom upgrades and new installations. Key features include main construction material: brass, handle type: lever, valve/cartridge type: 1/4 turn 3/4" ceramic disc valve.

- Combines bath filling with a shower handset for flexible bathing and rinsing
- Bristan bathroom brassware styling
- Main Construction Material: Brass
- Mount Type: Deck
- Handle Type: Lever
- Valve/Cartridge Type: 1/4 Turn 3/4" Ceramic Disc Valve
- Long life and easy to use 1/4 turn ceramic disc valves
- 3/4" valve
- Ceramic disc valve technology
- Lever handle operation
- Brass construction
- Metal back nuts for secure fitting
- Shower handset included

Specifications
- Measurements: (height) 151mm (width) 230mm (depth) 130mm
- Spout Measurements: (projection) 97mm (height) 86mm
- Base Diameter: (50mm
- Connection Inlet: 3/4" BSP
- Connection Outlet: M24 Flow Straightener
- Minimum Dynamic Pressure (bar): 0.2 bar
- Maximum Dynamic Pressure (bar): 5.0 bar
- Maximum Hot Water Temperature ﾰ: 65ﾰ
- Maximum Static Pressure (bar): 10 bar
- Flow Type: Single
- Flow Rates Through Bath Filler (mixed) - (l/min)
- Flow Rates Through Handset - (l/min)

Flow Rates
- 0.2 bar: 25 (l/min)
- 0.5 bar: 38 (l/min)
- 1 bar: 53.8 (l/min)
- 2 bar: 76 (l/min)
- 3 bar: 93.1 (l/min)
- 5 bar: 120.2 (l/min)
