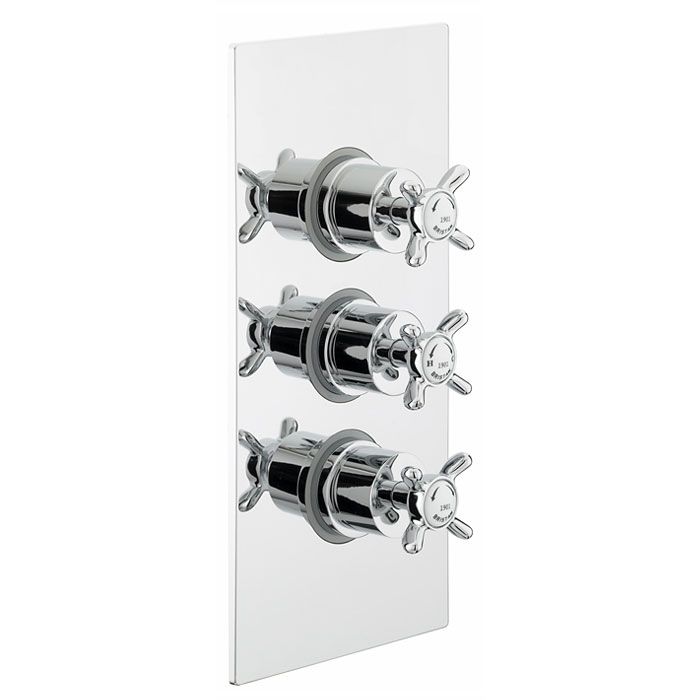

1901 Recessed Shower valve with Stopcocks Chrome
View All 1901 Bathroom Taps
View All 1901 Showers
View All 1901 AccessoriesThe Bristan 1901 Recessed Shower valve with Stopcocks Chrome (N2SHC3STPC) draws inspiration from traditional Victorian design, making it ideal for period properties and classic bathroom interiors. Designed for long-term reliability and supported by Bristan's Lifetime Guarantee.
Taking an authentic, traditional bathroom design as inspiration, Bristan lovingly recreated the 1901 taps and showers. As with the original, these are also cast out of solid brass and chrome plated with white indices and only the very finest materials have been used.
But Bristan also added the best the 21st century has to offer to these 1901 taps, mixers and showers, far advanced engineering techniques.
With this shower valve the middle handle controls your temperature whilst the top and bottom handles control water flow to two individual outlets. This is a thermostatic shower valve that maintains your desired temperature within +/- 1ﾰC.
This shower is ideal for use with our wide selection of fixed shower heads and shower kits, also seen in our showers section.
Specifications
- Measurements (Backplate): (height) 355mm (width) 160mm - Distance between handles (from centre of handle): 100mm - Finish/Colour: Chrome Plated - Main Construction Material: Brass - No of Controls: 3 - Shower Type: Recessed Dual Control - Shower Head Type: None - Shower Kit: N/A - Valve/Cartridge Type: Thermostatic Cartridge & 3/4" Ceramic Disc Valve - Maximum Hot Water Supply Temperature OC: 80 - Plumbing System Suitability: Suitable for all plumbing systems, ideally balanced - Minimum Dynamic Pressure (bar): 0.2 - Maximum Dynamic Pressure (bar): 5 - Maximum Static Pressure (bar): 10 - Connection Inlet: 15mm Compression - Connection Outlet: 15mm Compression - Isolation Valve Included: No - Check Valve Included: Yes - Range: 1901 - WRAS Product Certications - Lifetime GuaranteeFeatures
- 15mm inlet connections - This shower valve has been designed to fit in any UK wall cavity and therefore only needs a 35mm deep cavity space - Fitting depth including plasterboard and tiles is 45mm - 75mm - Minimum cold water supply temperature is 4ﾰC - Maximum hot water supply temperature is 80ﾰCFlow Rates (l/min)
- 0.2 bar - 7.7 (l/min) - 0.5 bar - 14.2 (l/min) - 1 bar - 20.7 (l/min) - 2 bar - 29.3 (l/min) - 3 bar - 36 (l/min) - 5 bar 46.3 (l/min)| Basic Dimensions | The valve has fixed inlet centres of 150mm and the valve requires a minimum cavity depth of 45mm |
|---|---|
| Approvals | WRAS Approved |
| EAN Number | 5014868029320 |
| Guarantee | Lifetime |
| Manufacturer | Bristan |
| Return period | 14 days |
