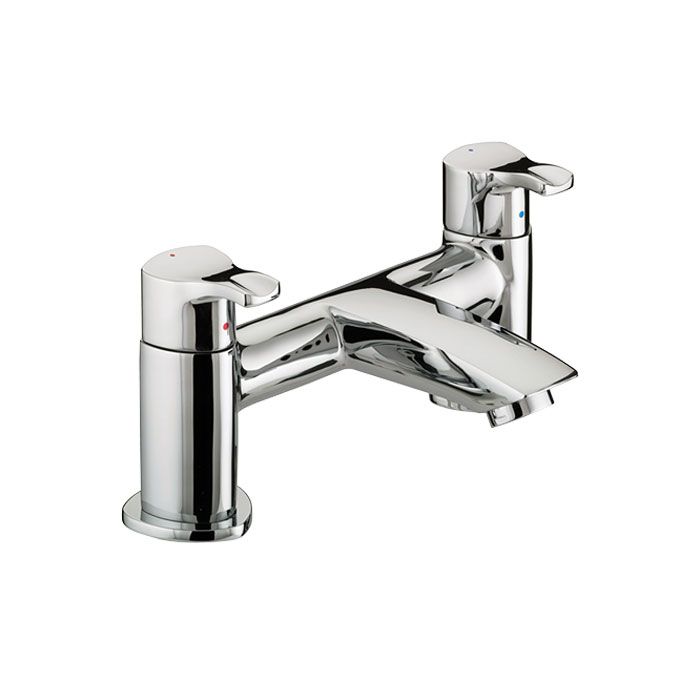

Capri Bath Filler
For a coordinated bathroom brassware scheme, the Bristan Capri Bath Filler (CAPBFC) provides a dependable bath filler tap. It fills the bath cleanly while coordinating with matching basin brassware. Key features include main construction material: brass, handle type: lever, finish: chrome.
- Fills the bath cleanly while coordinating with matching basin brassware - Simple contemporary styling with reliable everyday usability - Main Construction Material: Brass - Mount Type: Deck - Handle Type: Lever - Finish: Chrome - Valve/Cartridge Type: 3/4" Ceramic Disc Valve 1/4 Turn - Long life and easy to use 1/4 turn ceramic disc valves - Easy-to-use lever handles - Chrome plated to BS EN 248 - Chrome finish - Ceramic disc valve technology - Lever handle operation - Brass construction - Metal back nuts for secure fitting
Specifications - Measurements: (Height) 110mm (Width) 235mm (Depth) 145mm - Spout Dimensions: (Projection) 100mm, (Height) 45mm - Connection Inlet: 3/4" BSP - Connection Outlet: M28 flow straightener - Minimum Operating Pressure: 0.2 bar (Low pressure) - Maximum Hot Water Temperature ﾰ: 65ﾰ - Maximum Static Pressure (bar): 10 bar - Flow Rates (l/min)
Flow Rates - 0.2 bar - 27.2 (l/min)- 0.5 bar - 45.3 (l/min)- 1 bar - 64.9 (l/min)- 2 bar - 91.8 (l/min)- 3 bar - 112.4 (l/min)- 5 bar - 145.1 (l/min)
| Approvals | WRAS Approved |
|---|---|
| Basic Dimensions | 110mm height, 100mm projection |
| EAN Number | 5014869084281 |
| Guarantee | Lifetime |
| Pipe Centres | Fixed at 180mm |
| Manufacturer | Bristan |
| Valve Technology | Ceramic Disc |
| Return period | 14 days |
