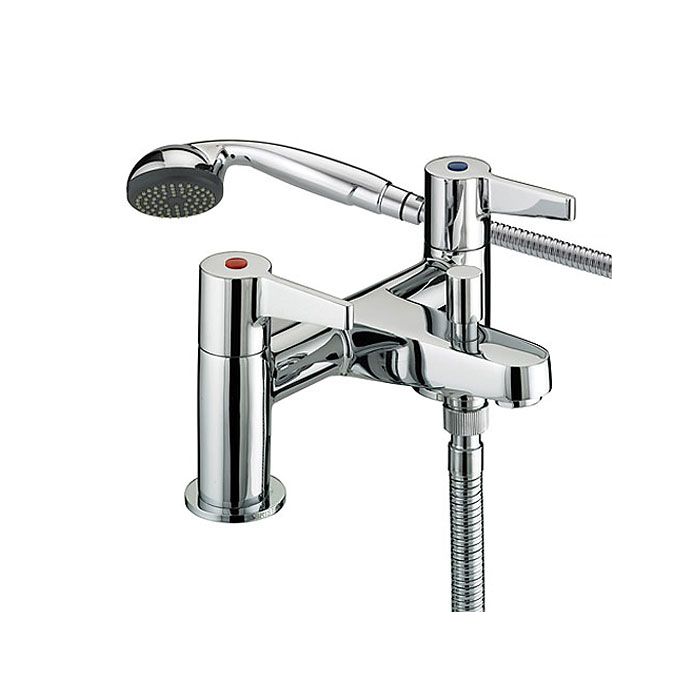

Design Utility Lever Bath Shower Mixer
The utility lever bathroom taps offer fantastic quality and value for money. The simple design no fuss taps include ceramic discs within and lever handles offering an easy to use control.
The utility lever bathroom taps offer fantastic quality and value for money. The simple design no fuss taps include ceramic discs within and lever handles offering an easy to use control. This mixer tap is for baths with two tap holes. It is supplied complete with a 1.75m shower hose, a single function shower handset and a wall bracket. They have clear hot and cold indicators helping to prevent accidental scalding.
The design utility lever bath shower mixer is only available in chrome plated finish as shown.
Specification
- Measurements: (height) 120mm (width) 230mm (depth) 150mm
- Spout Measurements: (projection) 110mm (height) 48mm
- Base Diameter: 50mm
- Product Type: Bathroom Tap
- Main Construction Material: Brass
- Mount Type: Deck
- Handle Type: Lever
- Connection Inlet: 3/4” BSP
- Connection Outlet: M24 Flow Straightener
- Number of Tap Holes: 2
- Valve/Cartridge Type: 1/4 Turn 3/4” Ceramic Disc Valve
- Plumbing System Requirements: Suitable for all plumbing systems
- Minimum Dynamic Pressure (bar): 0.3 bar
- Maximum Dynamic Pressure (bar): 5.0 bar
- Maximum Hot Water Temperature °C: 60°C
- Maximum Static Pressure (bar): 10 bar
- Flow Type: Single
- Range: Utility
- Approvals: WRAS Approved
- Guarantee: 10 years
Features
- Long life and easy to use 1/4 turn ceramic disc valves
- Metal back nuts for added durability
- Includes 1.5m hose, rub-clean anti-limescale handset and wall bracket
- Minimum working pressure of 0.3 bar
Flow Rates Through Bath Filler (mixed) - (l/min)
- 0.3 bar: 20.5 (l/min)
- 0.5 bar: 26.5 (l/min)
- 1 bar: 37.4 (l/min)
- 2 bar: 52.9 (l/min)
- 3 bar: 64.8 (l/min)
- 5 bar: 83.7 (l/min)
Flow Rates Through Handset - (l/min)
- 0.3 bar: 11.4 (l/min)
- 0.5 bar: 14.7 (l/min)
- 1 bar: 20.7 (l/min)
- 2 bar: 29.3 (l/min)
- 3 bar: 35.9 (l/min)
- 5 bar: 46.3 (l/min)
| Approvals | WRAS Approved |
|---|---|
| EAN Number | 5014869084700 |
| Guarantee | Lifetime |
| Pipe Centres | Fixed at 180mm |
| Manufacturer | Bristan |
| Valve Technology | Ceramic Disc |
