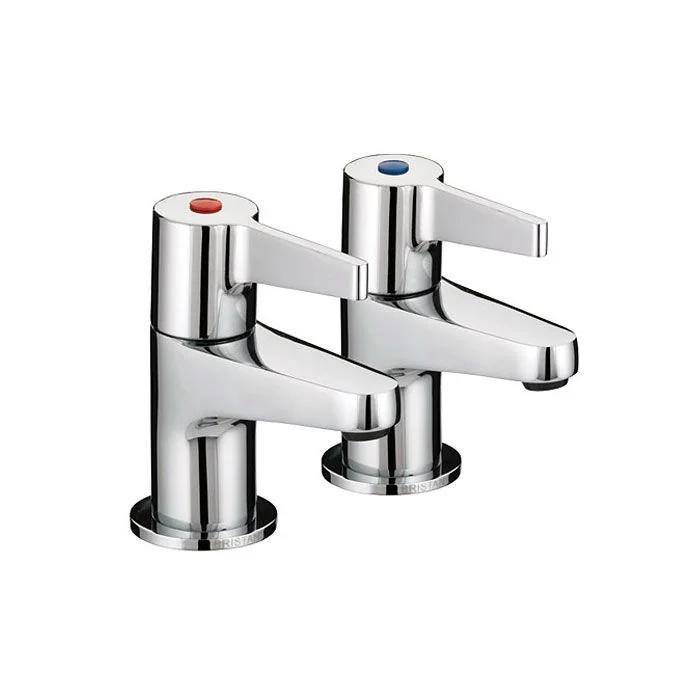

Design Utility Lever Bath Taps

Made for the Design range, the Bristan Design Utility Lever Bath Taps (DUL3/4C) are practical bath taps with a clear design identity. They provide separate bath water control for classic two-hole bath installations. Key features include the design utility lever bath taps are only available in chrome plated finish as shown., lever: lever, finish: chrome.

- Provide separate bath water control for classic two-hole bath installations
- Bristan bathroom brassware styling
- The design utility lever bath taps are only available in chrome plated finish as shown.
- Mount: Deck Mounted
- Lever: Lever
- Finish: Chrome
- Material: Solid brass
- Valve/Cartridge Type: 1/4 Turn 3/4" Ceramic Disc
- Long life and easy to use 1/4 turn ceramic disc valves
- 3/4" valve
- Chrome finish
- Ceramic disc valve technology
- Lever handle operation
- Deck mounted installation
- Brass construction
- Metal back nuts for secure fitting

Specifications
- Tap Measurements: (Height) 110mm (Depth) 115mm
- Spout Dimensions: (Projection) 80mm, (Height) 50mm
- Base Diameter: 50mm
- Connection Inlet: 3/4" BSP
- Connection Outlet: Aerator
- Minimum Dynamic Pressure: 0.2 bar
- Maximum Dynamic Pressure: 5.0 bar
- Maximum Hot Water Temperature degree C: 65
- Maximum Static Pressure: 10 bar
- Flow Rates (l/min)

Flow Rates
- 0.2 bar - 10.6 (l/min)
- 0.5 bar - 18.1 (l/min)
- 1 bar - 26.1 (l/min)
- 2 bar - 37.2 (l/min)
- 3 bar - 45.7 (l/min)
- 5 bar - 57.1 (l/min)
