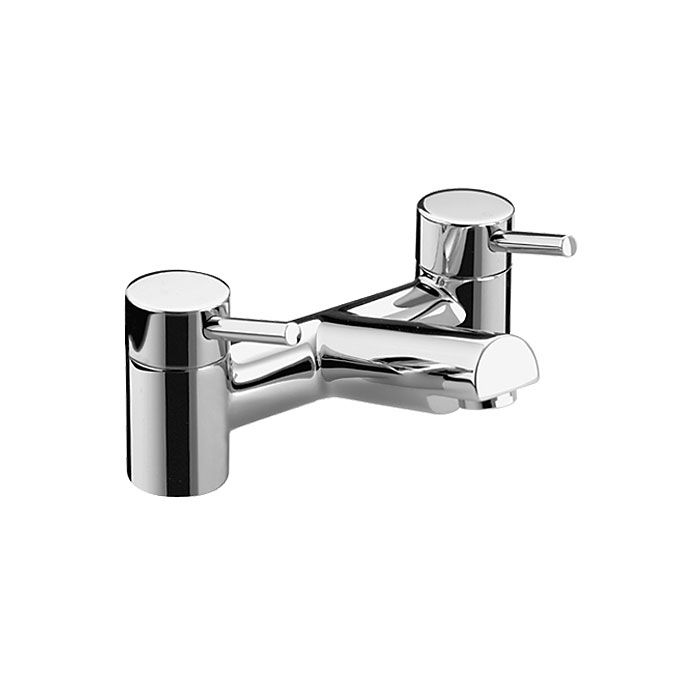

Prism Bath Filler

The Bristan Prism Bath Filler (PMBFC) combines crisp geometric styling for modern bathrooms with the practical function of a bath filler tap. It fills the bath cleanly while coordinating with matching basin brassware, making it suitable for bathroom upgrades and new installations. Key features include the prism bath filler is only available in chrome plated finish as shown., main construction material: brass, handle type: lever.

- Fills the bath cleanly while coordinating with matching basin brassware
- Crisp geometric styling for modern bathrooms
- The prism bath filler is only available in chrome plated finish as shown.
- Main Construction Material: Brass
- Mount Type: Deck
- Handle Type: Lever
- Finish: Chrome
- Valve/Cartridge Type: 1/4 Turn 3/4" Ceramic Disc Valve
- Long life 1/4 turn ceramic disc valves for added durability and smooth control.
- A hard-wearing, flawless, scratch resistant chrome finish that lasts for years. Salt spray tested to ensure added durability.
- Chrome finish
- Ceramic disc valve technology
- Lever handle operation
- Brass construction

Specifications
- Measurements: (Height) 110m (Width) 230mm (Depth) 160mm
- Spout Dimensions: (Projection) 120mm, (Height) 50mm
- Connection Inlet: 3/4" BSP
- Connection Outlet: flow straightener
- Minimum Operating Pressure: 0.2 bar (Low pressure)
- Maximum Dynamic Pressure: 5 bar
- Maximum Hot Water Temperature ﾰ: 60ﾰ
- Maximum Static Pressure (bar): 10 bar
- Flow Rates (l/min)

Flow Rates
- 0.2 bar - 30.4 (l/min)
- 0.5 bar - 48.1 (l/min)
- 1 bar - 68 (l/min)
- 2 bar - 96.2 (l/min)
- 3 bar - 117.8 (l/min)
- 5 bar - 152.1 (l/min)
