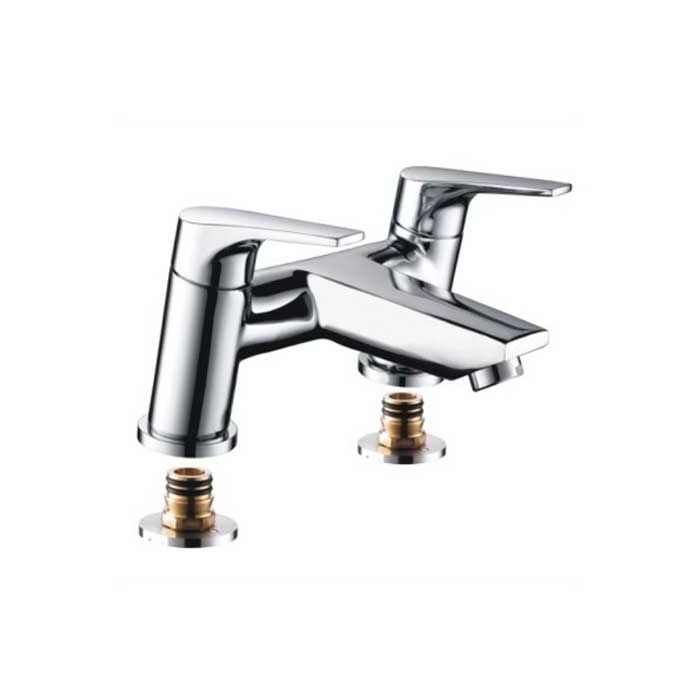

Vantage Bath Filler
The Vantage Bath Filler (VT2BFC) is a Bristan bath filler tap created for everyday usability, durable water control and matching bathroom styling. Key features include main construction material: brass, handle type: lever, valve/cartridge type: 3/4" ceramic disc valve.
- Fills the bath cleanly while coordinating with matching basin brassware - Bristan bathroom brassware styling - Main Construction Material: Brass - Mount Type: Deck - Handle Type: Lever - Valve/Cartridge Type: 3/4" Ceramic Disc Valve - Finish: Chrome - Long life and easy to use 1/4 turn ceramic disc valves - Chrome finish - Ceramic disc valve technology - Lever handle operation - Brass construction - Metal back nuts for secure fitting
Specifications - Measurements: (Height) 120mm (Depth) 170mm (Width) 230mm - Spout Measurements: (Projection) 130mm (Height) 50mm - Pipe Centres: 180mm - Connection Inlet: 3/4"BSP - Connection Outlet: M24 Aerator - Minimum Dynamic Pressure (bar): 0.2 bar - Maximum Dynamic Pressure (bar): 5.0 bar - Maximum Hot Water Temperature ᄚ: 65ᄚ - Maximum Static Pressure (bar): 10 bar - Flow Type: Single - Flow Rates (l/min)
Flow Rates - 0.2 bar - 24.3 (l/min)- 0.5 bar - 38.4 (l/min)- 1 bar - 54.3 (l/min)- 2 bar - 76.8 (l/min)- 3 bar - 94.1 (l/min)- 5 bar - 121.5 (l/min)
| Approvals | WRAS Approved |
|---|---|
| Basic Dimensions | 160mm projection |
| EAN Number | 5014868014647 |
| Guarantee | Lifetime |
| Pipe Centres | Fixed at 180mm |
| Manufacturer | Bristan |
| Valve Technology | Ceramic Disc |
| Return period | 14 days |
