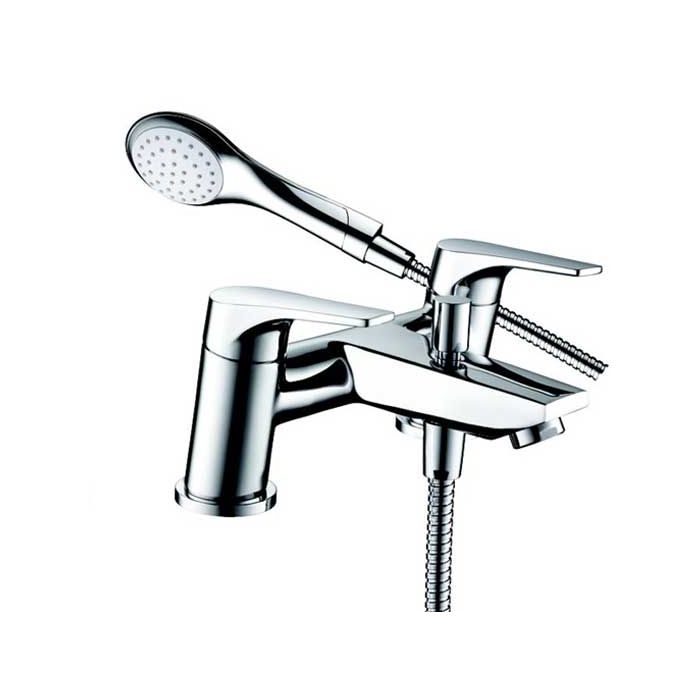

Vantage Bath Shower Mixer

Specification

• Measurements: (Height) 120mm (Width) 230mm (Depth) 170m
• Spout Measurements: (Height) 50mm (Projection) 145mm
• Pipe Centres: 180mm
• Finish: Chrome
• Main Construction Material: Brass
• Mount Type: Deck Mounted
• Handle Type: Lever Handles
• Connection Inlet: 3/4” BSP
• Connection Outlet: M28 Flow Straightener
• Number of Tap Holes: 2
• Valve/Cartridge Type: 3/4” Ceramic Disc Valve
• Plumbing System Requirements: Suitable for all plumbing systems
• Supplied with rub clean handset, 1.75m rub clean shower hose and wall bracket
• Minimum Dynamic Pressure (bar): 0.4 bar
• Maximum Dynamic Pressure (bar): 5.0 bar
• Maximum Hot Water Temperature °C: 60°C
• Maximum Static Pressure (bar): 10 bar
• Flow Type: Single Flow
• Isolation Included: No
• Range: Vantage
• Approvals: WRAS Approved
• Warranty: 10 years

Features

• Long life and easy to use 1/4 turn ceramic disc valves
• Metal back nuts for added durability
• Includes 1.75m hose, rub-clean anti-limescale handset and wall bracket
• Minimum working pressure of 0.4 bar

Flow rates (l/min) Through Bath Filler

• 0.4 bar - 22.6 (l/min)
• 0.5 bar -  25.3 (l/min)
• 1 bar - 35.8 (l/min)
• 2 bar - 50.6 (l/min)
• 3 bar - 62 (l/min)
• 5 bar - 80 (l/min)

Flow rates (l/min) Through Handset

• 0.4 bar - 5.9  (l/min)
• 0.5 bar - 6.6 (l/min)
• 1 bar - 9.4  (l/min)
• 2 bar - 13.2 (l/min)
• 3 bar - 16.2  (l/min)
• 5 bar - 20.9 (l/min)
