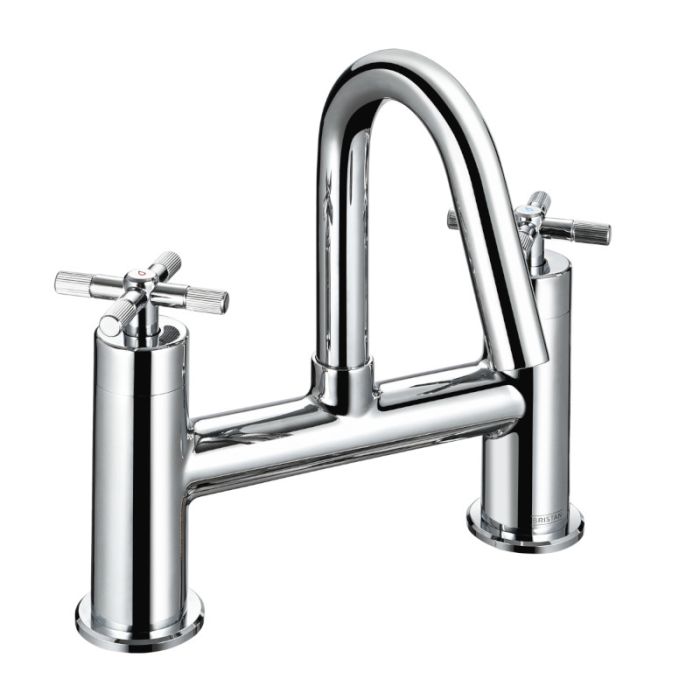

Cruzar Bath Filler Chrome

Specifications

• Measurements: (Height) 245mm (Width) 235mm (Depth) 150mm
• Spout Dimensions: (Projection) 115mm, (Height) 135mm
• Pipe Centres: 180mm
• Base Diameter: 50mm
• Connection Inlet: 3/4” BSP
• Connection Outlet: M16 Flow Straightener
• Lever: Twin crosshead lever handle
• Finish: Chrome
• Material: Solid brass
• Valve/Cartridge Type: 3/4” Ceramic Disc Valve - 1/4 Turn
• Plumbing System Requirements: Suitable for all plumbing systems
• Minimum Operating Pressure: 0.2 bar (Low pressure)
• Manufacturer: Bristan
• Range: Cruzar
• 10-year parts and 1 year labour guarantee for peace of mind.

Features

• Long life 1/4 turn ceramic disc valves for added durability and smooth control.
• Robust metal fixing nut to secure the tap in place reducing the risk of loosening over time.
• Hard-wearing, flawless, scratch resistant chrome finish that lasts for years. Salt spray tested to ensure added durability.

Flow Rates (l/min)

• 0.2 bar - 14.2 (l/min)
• 0.5 bar - 23.9 (l/min)
• 1 bar - 34.6 (l/min)
• 2 bar - 49.2 (l/min)
• 3 bar - 62.2 (l/min)
• 5 bar - 80.3 (l/min)
