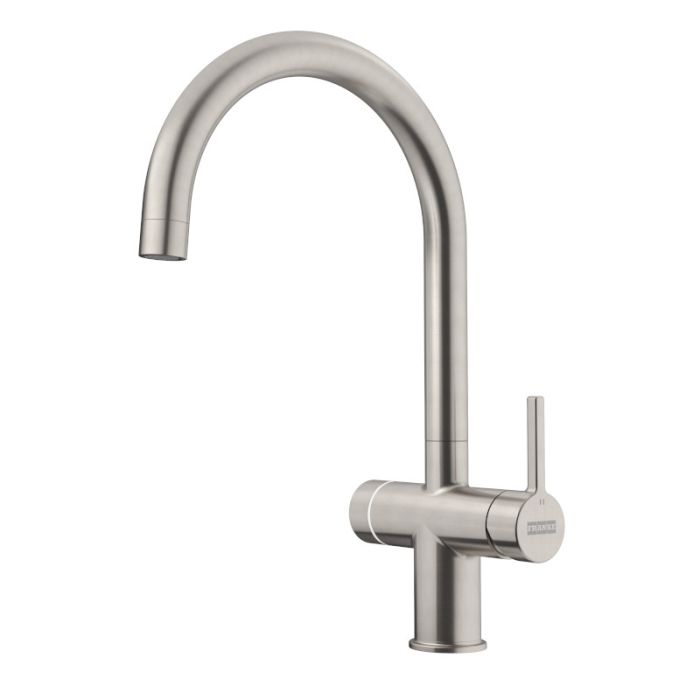

Franke Maris Water Hub 4-in-1 Electronic Filter Tap (7L) Decor Steel

Tap Specification

• Dimensions: (Height) 388mm, (Height to spout) 243mm, (Projection) 222mm
• Base Diameter: 50mm
• Hole Cut-out Size: 35mm
• Minimum Operating Pressure: 1.0bar (High pressure)
• Maximum Operating Pressure: 5.0bar
• Spout Type: J-Spout
• Spout Rotation: 180 degrees swivel spout
• Tap Finish: Decor Steel
• Tap Material: Brass
• Fixation type: Shank
• Water supply hose connection: 3/8"
• Water supply hose length: 500mm
• Filter: PRO-M 5 step filter - reduces water hardness to prevent limescale. Stabilises healthy minerals e.g. calcium and magnesium.
• Range: Maris Water Hub
• Delivers hot and cold mains water plus filtered cold & 100⁰C boiling filtered water

Boiler Tank Specification

• Dimensions: (Top Diameter) 224mm, (Base Diameter) 229mm (Height) 494mm
• Capacity: 7L
• Energy Class: A
• Power: 2100W
• Heat-up time (100°C): 24 mins
• Standby mode max: 14W

Additional Filtration Kit Specification

• Dimensions: (Diameter) 61mm (Height) 77mm (Depth) 87mm
• Type of material: Various materials
• Accessory part sub MF systems acc. others
• Only compatible with Franke Maris Water Hub ELECTRONIC models.
• Adds filtered cold water to your Franke Maris 3-in-1 Water Hub Electronic Tap
• Product code: 112.0712.978

Features

• 100 degrees with less spitting, added safety.
• Improved LED on electronic tap.
• Tube-in-tube construction- safe design.
• Forward only lever - no issues with upstands.
• Eco lever for water efficiency.
• Smaller tank - Enhanced flexibility to allow for best use of cabinet space unit e.g. sorter bins/WDU.
• More powerful tank - Heats up faster and more energy efficient.
• Pre-filtered water to protect tank.
• More modular system - allows more free cabinet space for waste sorters/other.
• Box includes tap, boiler tank, filter and installation kit
• Also includes the 4-in-1 Filtration Upgrade Kit (112.0712.978)

The 4-in-1 Electronic design is easy and safe to use, thanks to the child-safe electronic control - Simply push the electronic control to activate, turn and select either the boiling or filtered water function by the colours shown and push and hold to start the water flow. Then once you have the amount of water you need, just release the control.

Alternatively, after selecting the boiling water function, push the control twice for a continuous water flow of 30 seconds (around 1L) or three times for 1 minute (around 2L). The water flow will stop automatically.

Whilst in filtered mode, a double push will deliver 15 seconds of continuous flow and a triple push will give 30 seconds of water. Again, after which time, the flow will stop automatically.
