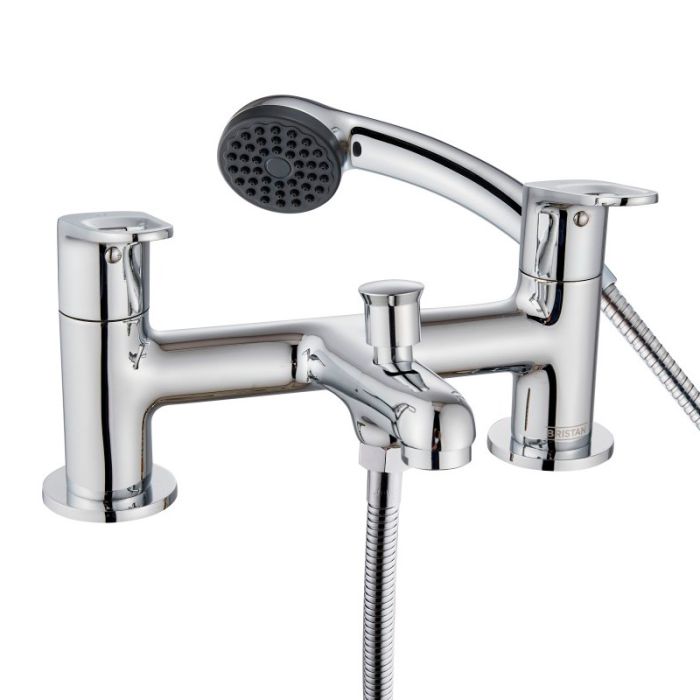

Essentials Iris Deck Bath Shower Mixer Chrome
Special Price
£99.75
Regular Price
£133.00
SKU
IRSBSMC
Bristan - Essentials Iris Deck Mounted Bath Shower Mixer in Chrome (IRS BSM C)
Specifications
- Measurements: Height: 125mm, Depth: 150mm, Width: 230mm
- Pipe Centres: 180mm
- Spout Height: 50mm
- Plumbing System Requirements: Suitable for all plumbing systems
- Mount Type: Deck Mounted
- Handle Type: Lever Handles
- Connection Inlet: 3/4” BSP
- Connection Outlet: M24 Flow Straightener
- Number of Tap Holes: 2
- Hose Length: 1500
- Valve/Cartridge Type: 3/4” Cermaic Disc Valves - 1/4 Turn
- Minimum Operating Pressure: 0.2bar (Low Pressure)
- Maximum Operating Pressure: 5.0 bar
- Maximum Hot Water Temperature oC: 60
- Maximum Statid Pressure (bar): 10 bar
- Flow Type: Single Flow
- Isolation Included: No
- Certification: WRAS Approved
- 5 year guarantee
- Range: Essentials Iris
Features
- A hard-wearing, flawless chrome finish that lasts for years
- Long life and easy to use 1/4 turn ceramic disc valves
- Supplied with metal fixing nuts to secure your tap in place
- Suitable for high and low pressure water systems
Flow Rates Mixer (l/min)
- 0.2 bar - 13.8 (l/min)
- 0.5 bar - 23.8 (l/min)
- 1 bar - 34.5 (l/min)
- 2 bar - 48 (l/min)
- 3 bar - 60 (l/min)
- 5 bar - 77 (l/min)
Flow Rates Handset (l/min)
- 0.2 bar - 4.4 (l/min)
- 0.5 ar - 7.6 (l/min)
- 1 bar - 11.2 (l/min)
- 2 bar - 17 (l/min)
- 3 bar - 21 (l/min)
- 5 bar - 27 (l/min)
| Approvals | WRAS Approved |
|---|---|
| Basic Dimensions | Height: 125mm, Projection: 150mm, Width: 215mm |
| Guarantee | Lifetime |
| Pipe Centres | Fixed at 180mm |
| Manufacturer | Bristan |
| Valve Technology | Ceramic Cartridge |
| Return period | 14 days |
