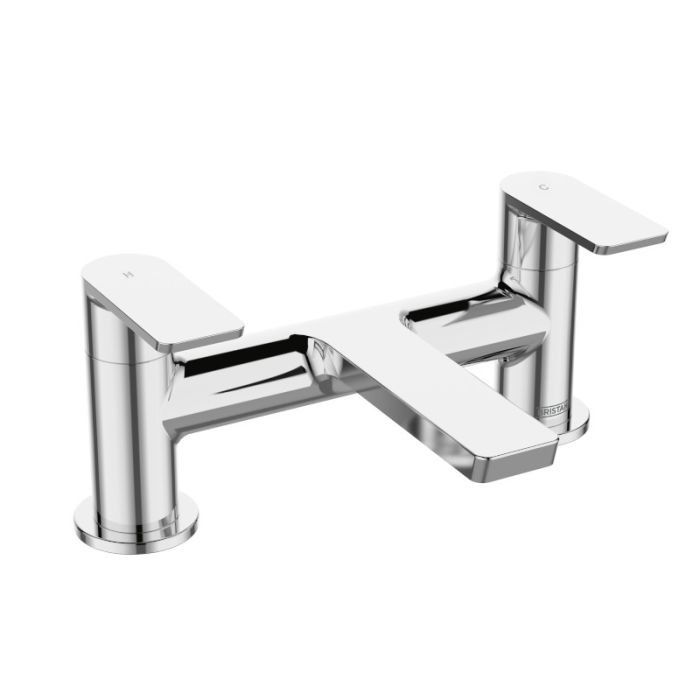

Napoli Bath Filler Chrome

Specifications

• Measurements: (Height) 106mm (Width) 213mm (Depth) 146mm
• Spout Dimensions: (Projection) 110mm, (Height) 50mm
• Pipe Centres: 180mm
• Base Diameter: 50mm
• Connection Inlet: 3/4” BSP
• Connection Outlet: M24 recessed aerator
• Lever: Twin lever handle
• Finish: Chrome
• Material: Solid brass
• Valve/Cartridge Type: 3/4” Ceramic Disc Valve
• Plumbing System Requirements: Suitable for all plumbing systems
• Minimum Operating Pressure: 0.2 bar (Low pressure)
• Manufacturer: Bristan
• Range: Napoli
• Approvals: WRAS Approved
• 10-year parts and 1 year labour guarantee for peace of mind.

Features

• Long life 1/4 turn ceramic disc valves for added durability and smooth control
• Robust metal fixing nut to secure the tap in place reducing the risk of loosening over time
• A hard-wearing, flawless, scratch resistant chrome finish that lasts for years. Salt spray tested to ensure added durability.
• Co-ordinating Bathroom taps available.

Flow Rates (l/min)

• 0.2 bar - 14.2 (l/min)
• 0.5 bar - 23.4 (l/min)
• 1 bar - 34.5 (l/min)
• 2 bar - 48.6 (l/min)
• 3 bar - 59.5 (l/min)
• 5 bar - 76.8 (l/min)
