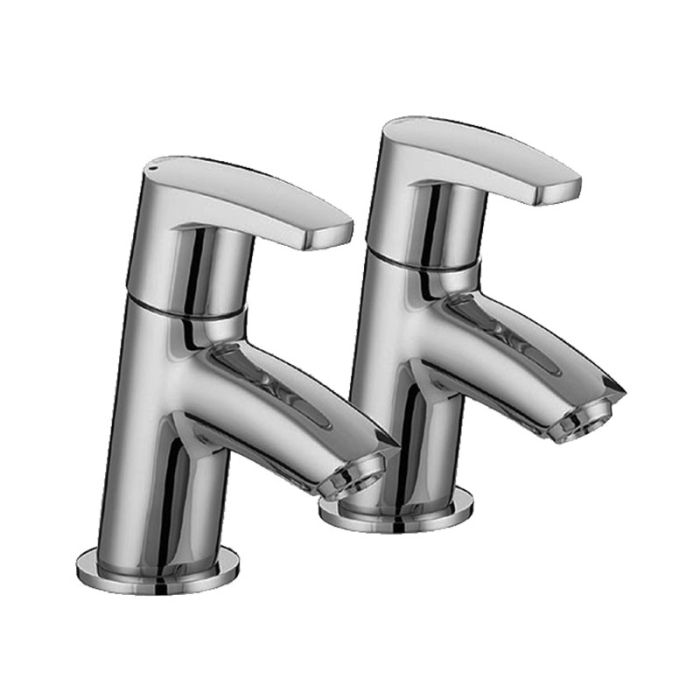

Orta Bath Taps

Specification

• Measurements: (height) 125mm (depth) 120mm
• Spout Measurements: (projection) 95mm (height) 40mm
• Base Diameter: 55mm
• Product Type: Bathroom Taps
• Main Construction Material: Brass
• Mount Type: Deck
• Handle Type: Lever
• Connection Inlet: 3/4” BSP
• Connection Outlet: M24 Flow Straightener
• Number of Tap Holes: 2
• Valve/Cartridge Type: 3/4” Ceramic Disc Valve - ¼ turn
• Plumbing System Requirements: Suitable for all plumbing systems
• Minimum Dynamic Pressure (bar): 0.2 bar
• Maximum Dynamic Pressure (bar): 5 bar
• Maximum Hot Water Temperature °C: 60°C
• Maximum Static Pressure (bar): 10 bar
• Isolation Included: No
• Range: Orta
• Approvals: WRAS Approved
• Guarantee: 10 years

Features

• Long life and easy to use 1/4 turn ceramic disc valves
• Metal back nuts for added durability
• Easy-to-use lever handles
• Chrome plated to BS EN 248

Flow Rate (l/min) cold tap

• 0.2 bar: 15.3 (l/min)
• 0.5 bar: 23.5 (l/min)
• 1 bar: 36.2 (l/min)
• 2 bar: 51.1 (l/min)
• 3 bar: 61.9 (l/min)
• 5 bar: 103.2 (l/min)

Flow Rate (l/min) hot tap

• 0.2 bar: 14.5 (l/min)
• 0.5 bar: 24.4 (l/min)
• 1 bar: 35.4 (l/min)
• 2 bar: 50.1 (l/min)
• 3 bar: 61.3 (l/min)
• 5 bar: 79.2 (l/min)
