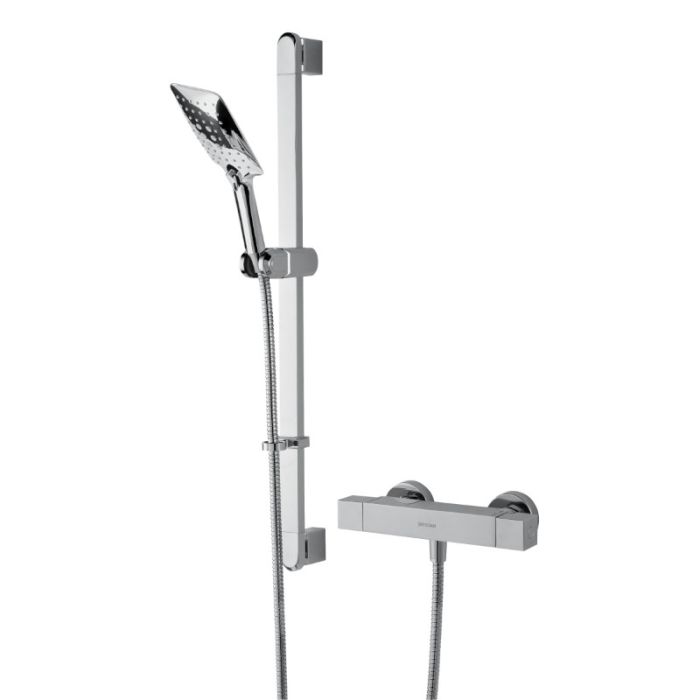

Qubo Thermostatic Bar Shower Valve Kit Chrome
View All Qubo Bathroom Taps
View All Qubo ShowersThe Bristan Qubo Thermostatic Bar Shower Valve Kit Chrome (QBSHXSMFFC) provides precise thermostatic control and dependable operation, making it suitable for a wide range of bathroom installations.
Featuring a contemporary squared design the Qubo bar shower has a two outlet diverter, allowing you to run water from either the supplied drench head or handset.
- Shower Valve Mounting: Exposed bar valve - Number of Outlets: 1 - Riser Rail Measurements: (Height) 705mm (Depth) 70mm - Bar Valve Measurements: (Width) 265mm (Centres) 150mm - Handset: Multi-function handset - Hose: 1.5m - Valve/Cartridge Type: 1/2" Ceramic Disc Valve - 1/4 turn - Connection Inlet: 15mm Compression - Connection Outlet: G1/2" - Minimum Operating Pressure: 0.3bar (Low pressure) - Maximum Hot Water Temperature: (˚C) 65 - Pre-set Maximum Hot Water Temperature: (˚C) 38 - Isolation Valve Included: Yes - Check Valve Included: Yes - Suitable for use with low, medium and high pressure systems - Finish: Chrome - Material: Brass - Brand: Bristan - Range: Qubo - Warranty: 5-year parts and 1 year labour guarantee for peace of mindFeatures
- Supplied with our wall-mount 12 fixing kit. The simplest solution for installing, maintaining and replacing bar showers, using built in front-of-wall isolation valves. - Thermostatic cartridge with preset temperature stop at 38ﾰC, can be over-ridden to a maximum of 46ﾰC - Dual control - flow and temperature are controlled separately - Automatic shut-off in the event of hot or cold water supply failure - 15mm inlet connectionsProduct Specification: - Lifetime Guarantee - Contemporary square design- Two outlet diverter- Drench head and handset functionality
| Basic Dimensions | Valve Dimensions: (Width) 265mm (Centres) 150mm |
|---|---|
| Approvals | WRAS Approved |
| EAN Number | 5014868078175 |
| Guarantee | Lifetime |
| Pipe Centres | Fixed at 150mm |
| Manufacturer | Bristan |
| Return period | 14 days |
