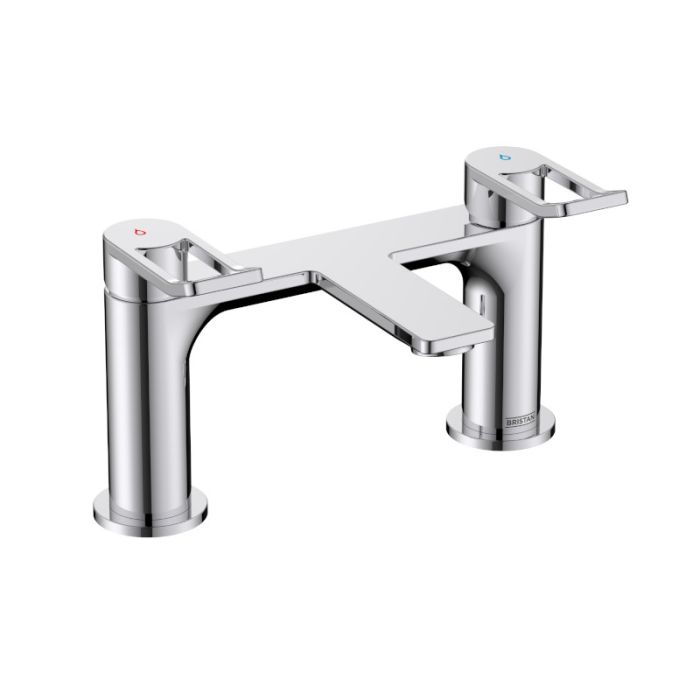

Saffron Bath Filler Chrome

Specifications

• Measurements: (Height) 140mm (Width) 230mm (Depth) 140mm
• Spout Dimensions: (Projection) 100mm, (Height) 95mm
• Pipe Centres: 180mm
• Base Diameter: 50mm
• Connection Inlet: 3/4” BSP
• Connection Outlet: M24 Recessed Honeycomb Aerator
• Lever: loop handle
• Number of tap holes: 2
• Finish: Chrome
• Material: Solid brass
• Valve/Cartridge Type: 3/4” Short Stem Ceramic Disc Valve
• Plumbing System Requirements: Suitable for all plumbing systems
• Minimum Operating Pressure: 0.2 bar (Low pressure)
• Maximum Operating Pressure: 5 bar
• Maximum Static Pressure (bar): 10 bar
• Flow type: Single
• Manufacturer: Bristan
• Range: Saffron
• 10-year parts and 1 year labour guarantee for peace of mind.

Features

• Long life 1/4 turn ceramic disc valves for added durability and smooth control
• Robust metal fixing nut to secure the tap in place reducing the risk of loosening over time
• Also available in black and brass
• Co-ordinating Bathroom taps available.

Flow Rates (l/min)

• 0.2 bar - 13.9  (l/min)
• 0.5 bar - 22.4 (l/min)
• 1 bar - 32.1 (l/min)
• 2 bar - 44.6 (l/min)
• 3 bar - 54.6 (l/min)
• 5 bar - 70.5 (l/min)
