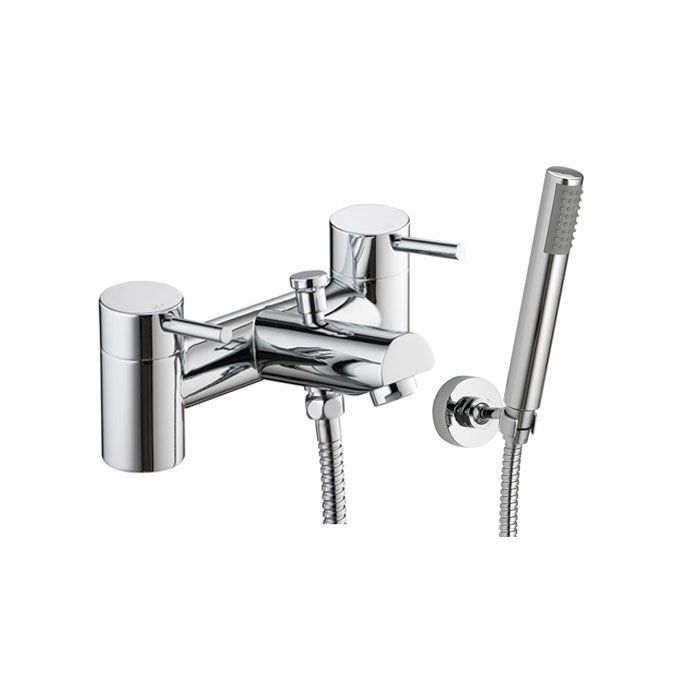

Xcite Bath Shower Mixer

Specification

• Type: Deck mounted bath shower mixer
• Measurements: (height) 103mm (depth) 125mm (width) 230mm
• Inlets: Fixed inlets at 180mm centres
• Spout Measurements: (projection) 155.5mm from back of body to centre of spout (height to spout outlet) 50mm
• Main Construction Material: Brass
• Finish: Chrome
• Mount Type: Deck
• Handle Type: Lever
• Number of Tap Holes: 2
• High quality cartridge to ensure smooth flow
• Suitable for low and high pressures
• Includes hose and handset and wall bracket
• Minimum Dynamic Pressure (bar): 0.2 bar
• Guarantee: 10 year guarantee against manufacturing defects
• Approvals: WRAS Approved
• Range: Xcite

Note:

• We recommend that a pressure reducing valve is fitted in installations where the water supply pressure exceeds 3 bar. Pressure in excess of 3 bar could reduce the working life of this product and invalidate the guarantee

Flow Rate (l/min)

• 0.2 bar: - 10 (l/min)
• 0.5 bar: 14 (l/min)
• 1 bar: 18 (l/min)
• 1.5 bar: 20 (l/min)
• 2 bar: 24 (l/min)
• 2.5 bar: 26 (l/min)
• 3 bar: 27 (l/min)
