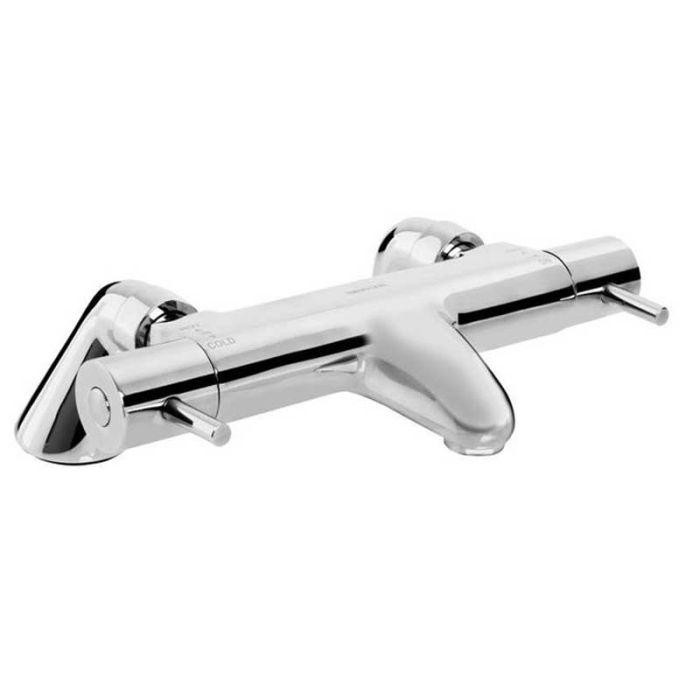

Artisan Thermostatic Lever Bath Filler
The Bristan Artisan Thermostatic Lever Bath Filler (AR2THLBFC) combines heritage-inspired detailing with a premium bathroom finish with the practical function of a bath filler tap. It fills the bath cleanly while coordinating with matching basin brassware, making it suitable for bathroom upgrades and new installations. Key features include construction material: brass, finish: chrome, handle type: lever.
- Fills the bath cleanly while coordinating with matching basin brassware
- Heritage-inspired detailing with a premium bathroom finish
- Construction Material: Brass
- Finish: Chrome
- Mount Type: Deck Mounted
- Handle Type: Lever
- Valve/Cartridge Type: 1/4" Turn 1/2" Ceramic Disc Valve
- Can be wall mounted using WMNT10 C
- Chrome finish
- Ceramic disc valve technology
- Lever handle operation
- Wall mounted installation
- Deck mounted installation
- Brass construction
Specifications
- Measurements: (height) 78mm (lever length) 30mm (width) 260mm (fixed inlet centre) 180mm
- Spout Measurements: (projection) 145mm (height) 38mm
- Base Diameter: 50mm
- Connection Inlet: G 3/4"
- Connection Outlet: Flow Straightener
- Minimum Dynamic Pressure: (bar) 0.5
- Maximum Dynamic Pressure: (bar) 5.0
- Maximum Hot Water Temperature: 80C
- Maximum Static Pressure: (bar) 10
- Flow Type: Dual Flow
- Pre-set maximum temperature at 38ï¾° can be overidden by the user
- Minimum working pressure of 0.5 bar
- Flow Rates (l/min)
Flow Rates
- 0.5 bar - 18.3 (l/min)
- 1 bar - 27 (l/min)
- 2 bar - 38.7 (l/min)
- 3 bar - 47.5 (l/min)
- 5 bar - 61 (l/min)
| Approvals | WRAS Approved |
|---|---|
| Availability | in stock |
| Basic Dimensions | 145mm projection, 80mm height |
| EAN Number | 5014868027036 |
| Guarantee | Lifetime |
| Pipe Centres | Fixed at 180mm |
| Manufacturer | Bristan |
| Valve Technology | Thermostatic Cartridges |
| Return period | 14 days |
