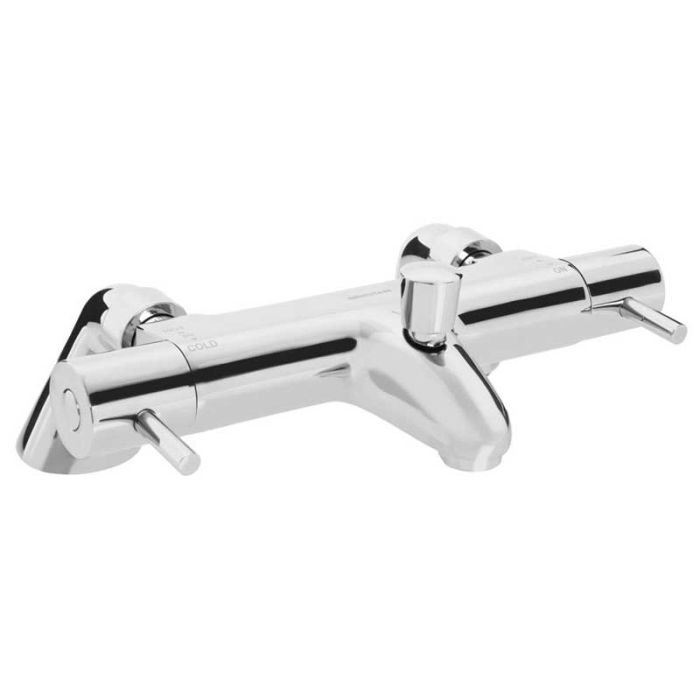

Artisan Thermostatic Lever Bath Shower Mixer

Made for the Artisan range, the Bristan Artisan Thermostatic Lever Bath Shower Mixer (AR2THLBSMC) gives the bathroom a practical bath shower mixer tap with a clear design identity. It combines bath filling with a shower handset for flexible bathing and rinsing. Key features include construction material: brass, finish: chrome, handle type: lever.

- Combines bath filling with a shower handset for flexible bathing and rinsing
- Heritage-inspired detailing with a premium bathroom finish
- Construction Material: Brass
- Finish: Chrome
- Mount Type: Deck Mounted
- Handle Type: Lever
- Valve/Cartridge Type: 1/2" CD Valve & Thermostatic Cartridge
- Dual control metal lever handles
- Chrome finish
- Lever handle operation
- Deck mounted installation
- Brass construction
- Shower handset included

Specifications
- Measurements: (height) 108mm (width) 263mm (fixed inlet centre) 180mm
- Spout Measurements: (projection) 145mm (height) 38mm
- Base Diameter: 50mm
- Connection Inlet: G 3/4"
- Connection Outlet: G 1/2"
- Plumbing System Requirements: Nominally Balanced Supply Pressures Only
- Working Pressure Range: Min 0.5bar, Max 5.0 bar
- Maximum Hot Water Temperature: ﾰ 80
- Maximum Dynamic Pressure: (bar) 5
- Maximum Static Pressure: (bar) 10
- Flow Type: Single
- Pre-set maximum temperature at 38ﾰ can be overidden by the user
- Operates at a minimum pressure of 0.5 bar
- Flow Rates (l/min)

Flow Rates
- Flow Rate: (l/min @ 3 bar) 24.9
- 0.5 bar - 10.6 (l/min)
- 1 bar - 15.6 (l/min)
- 2 bar - 22.5 (l/min)
