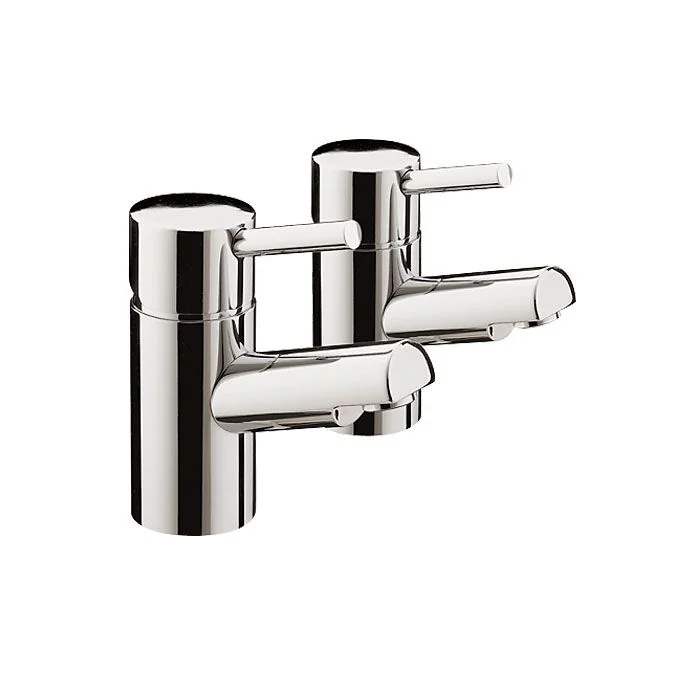

Prism Bath Taps

The Bristan Prism Bath Taps (PM3/4C) combine crisp geometric styling for modern bathrooms with the practical function of bath taps. They provide separate bath water control for classic two-hole bath installations, making them suitable for bathroom upgrades and new installations. Key features include main construction material: brass, handle type: tubular lever, valve/cartridge type: 3/4" ceramic disc valve ﾼ turn.

- Provide separate bath water control for classic two-hole bath installations
- Crisp geometric styling for modern bathrooms
- Main Construction Material: Brass
- Mount Type: Deck
- Handle Type: Tubular Lever
- Valve/Cartridge Type: 3/4" Ceramic Disc Valve ﾼ Turn
- Long life and easy to use 1/4 turn ceramic disc valves
- Easy-to-use lever handles
- Ceramic disc valve technology
- Lever handle operation
- Brass construction
- Metal back nuts for secure fitting

Specifications
- Measurements: (height) 110mm (depth) 130mm
- Spout Measurements: (projection) 90mm (height) 50mm
- Base Diameter: 50mm
- Connection Inlet: 3/4" BSP
- Connection Outlet: M24 Flow Straightener
- Minimum Dynamic Pressure (bar): 0.2 bar
- Maximum Dynamic Pressure (bar): 5 bar
- Maximum Hot Water Temperature ﾰ: 65ﾰ
- Maximum Static Pressure (bar): 10 bar
- High performance even at low pressures
- Flow Rate (l/min)
- 5 bar: 74

Flow Rates
- 0.2 bar: 15.3 (l/min)
- 0.5 bar: 23.8 (l/min)
- 1 bar: 33.5 (l/min)
- 2 bar: 47.4 (l/min)
- 3 bar: 58 (l/min)
