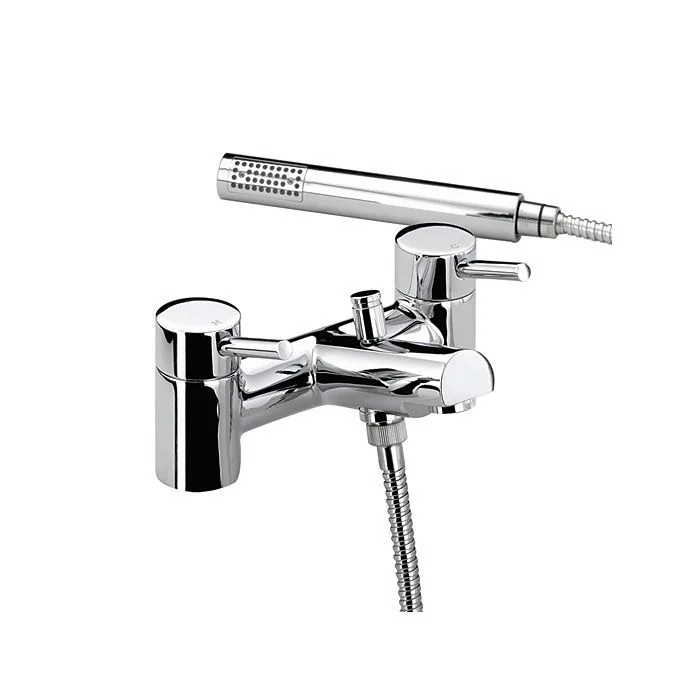

Prism Pillar Bath Shower Mixer
Made for the Prism range, the Bristan Prism Pillar Bath Shower Mixer (PMBSMC) gives the bathroom a practical bath shower mixer tap with a clear design identity. It combines bath filling with a shower handset for flexible bathing and rinsing. Key features include the prism bath filler is only available in chrome plated finish as shown., main construction material: brass, handle type: lever.
- Combines bath filling with a shower handset for flexible bathing and rinsing
- Crisp geometric styling for modern bathrooms
- The prism bath filler is only available in chrome plated finish as shown.
- Main Construction Material: Brass
- Mount Type: Deck
- Handle Type: Lever
- Finish: Chrome
- Valve/Cartridge Type: 1/4 Turn 3/4" Ceramic Disc Valve
- Long life and easy to use 1/4 turn ceramic disc valves
- Easy to use lever handles
- Chrome finish
- Ceramic disc valve technology
- Lever handle operation
- Brass construction
- Metal back nuts for secure fitting
- Shower handset included
Specifications
- Measurements: (Height) 105m (Width) 230mm (Depth) 160mm
- Spout Dimensions: (Projection) 120mm, (Height) 55mm
- Connection Inlet: 3/4" BSP
- Connection Outlet: flow straightener
- Minimum Operating Pressure: 0.2 bar (Low pressure)
- Maximum Dynamic Pressure: 5 bar
- Maximum Hot Water Temperature ï¾°: 65ï¾°
- Maximum Static Pressure (bar): 10 bar
- High performance even at low pressures
- Flow Rates Through Bath Filler (l/min)
- Flow Rates Through Handset (l/min)
Flow Rates
- 0.2 bar - 10.3 (l/min)
- 0.5 bar - 16.2 (l/min)
- 1 bar - 22.9 (l/min)
- 2 bar - 32.4 (l/min)
- 3 bar - 39.7 (l/min)
- 5 bar - 51.3 (l/min)
- 0.2 bar - 5 (l/min)
| Approvals | WRAS Approved |
|---|---|
| Availability | in stock |
| Basic Dimensions | 105mm height, 120mm projection |
| EAN Number | 5014868962894 |
| Guarantee | Lifetime |
| Pipe Centres | Fixed at 180mm |
| Manufacturer | Bristan |
| Valve Technology | Ceramic Disc |
| Return Period | 14 days |
