Quest Bath Filler
Special Price
£188.51
Regular Price
£251.35
SKU
QSTBFC

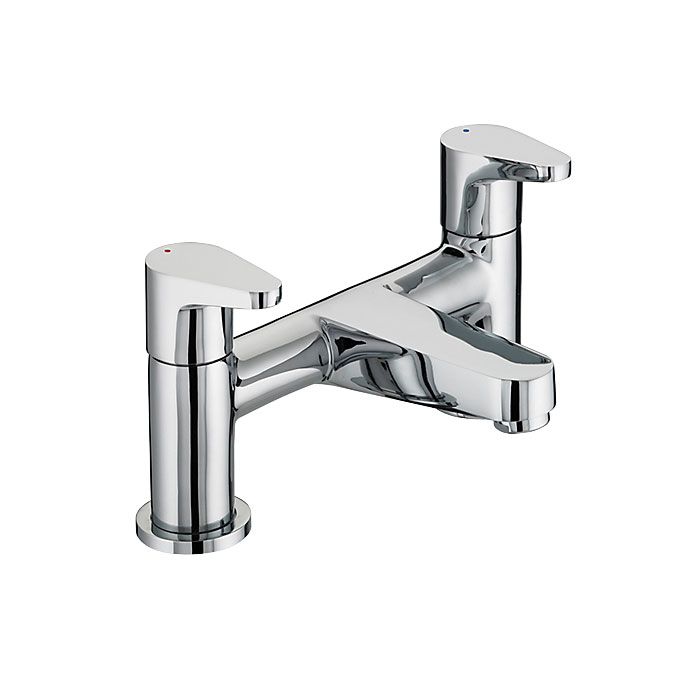

Bristan Quest Bath Filler
The Quest basin and bath taps feature a stylish minimal design with subtle hot and cold indicators incorporated and easy to use control suitable for the whole family.
This tap is for baths with two tap holes.
The Quest bath filler is only available in chrome plated finish as shown.
Specification
- Measurements: (height) 120mm (width) 217mm (depth) 143mm
- Spout Measurements: (projection) 110mm (height) 50mm
- Base Diameter: (50mm)
- Product Type: Bathroom Tap
- Main Construction Material: Brass
- Mount Type: Deck
- Handle Type: Lever
- Connection Inlet: 3/4” BSP
- Connection Outlet: M24 Flow Straightener
- Number of Tap Holes: 2
- Valve/Cartridge Type: 3/4” Ceramic Disc Valve
- Plumbing System Requirements: Suitable for all plumbing systems, ideally balanced
- Minimum Dynamic Pressure (bar): 0.2 bar
- Maximum Dynamic Pressure (bar): 5.0 bar
- Maximum Hot Water Temperature °C: 60°C
- Maximum Static Pressure (bar): 10 bar
- Flow Type: Single
- Range: Quest
- Approvals: WRAS Approved
- Guarantee: 10 years
Features
- Long life and easy to use 1/4 turn ceramic disc valves
- Metal back nuts for added durability
- 3/4” valve
Flow Rates (l/min)
- 0.2 bar: 14.3 (l/min)
- 0.5 bar: 22.6 (l/min)
- 1 bar: 31.8 (l/min)
- 2 bar: 44.9 (l/min)
- 3 bar: 55 (l/min)
- 5 bar: 71.1 (l/min)
| Approvals | WRAS Approved |
|---|---|
| Basic Dimensions | 120mm height, 110mm projection |
| EAN Number | 5014869068540 |
| Guarantee | Lifetime |
| Pipe Centres | Fixed at 180mm |
| Manufacturer | Bristan |
| Valve Technology | Ceramic Disc |
| Return period | 14 days |
