Quest Bath Shower Mixer
Special Price
£225.30
Regular Price
£300.40
SKU
QSTBSMC
The Quest bathroom taps and mixers are fresh and modern with gorgeous curves in all the right places completed by great function and reliability.
The Quest basin and bath taps feature a stylish minimal design with subtle hot and cold indicators incorporated and easy to use control suitable for the whole family.

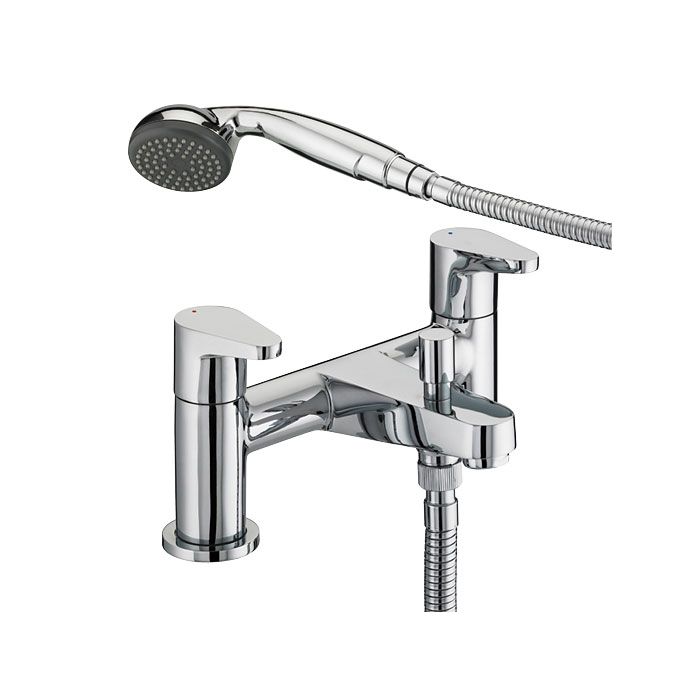

It is supplied complete with a 1.75m shower hose, a single function rub clean shower handset and a wall bracket. The Quest bath shower mixer is only available in chrome plated finish as shown.
-
Specification
- Measurements: (height) 120mm (width) 180mm (depth) 145mm
- Spout Measurements: (projection) 105mm (height) 50mm
- Handset: (height) 210mm (head) 73mm
- Base Diameter: 150mm
- Product Type: Bathroom Tap
- Main Construction Material: Brass
- Mount Type: Deck
- Handle Type: Lever
- Connection Inlet: 3/4” BSP
- Connection Outlet: G½"
- Number of Tap Holes: 2
- Valve/Cartridge Type: 3/4” Ceramic Disc Valve
- Plumbing System Requirements: Suitable for all plumbing systems
- Minimum Dynamic Pressure (bar): 0.3 bar
- Maximum Dynamic Pressure (bar): 5.0 bar
- Maximum Hot Water Temperature °C: 65°C
- Maximum Static Pressure (bar): 10 bar
- Flow Type: Single
- Approvals: WRAS Approved and Kiwa Approved
- Guarantee: 10 years
- Range: Quest
Features
- Long life and easy to use 1/4 turn ceramic disc valves
- Metal back nuts for added durability
- East to use metal handles
- Includes 1.75m hose, rub-clean anti-limescale handset and wall bracket
- Minimum working pressure of 0.3bar
- 0.3 bar: 19 (l/min)
- 0.5 bar: 24.6 (l/min)
- 1 bar: 34.8 (l/min)
- 2 bar: 49.2 (l/min)
- 3 bar: 60.2 (l/min)
- 5 bar: 77.7 (l/min)
Flow Rates Through Handset - (l/min)
- 0.3 bar: 6.3 (l/min)
- 0.5 bar: 8.1 (l/min)
- 1 bar: 11.5 (l/min)
- 2 bar: 16.3 (l/min)
- 3 bar: 19.9 (l/min)
- 5 bar: 25.7 (l/min)
| Approvals | WRAS Approved |
|---|---|
| Basic Dimensions | 120mm height, 110mm projection |
| EAN Number | 5014869068533 |
| Guarantee | Lifetime |
| Pipe Centres | Fixed at 180mm |
| Manufacturer | Bristan |
| Valve Technology | Ceramic Disc |
| Return period | 14 days |
