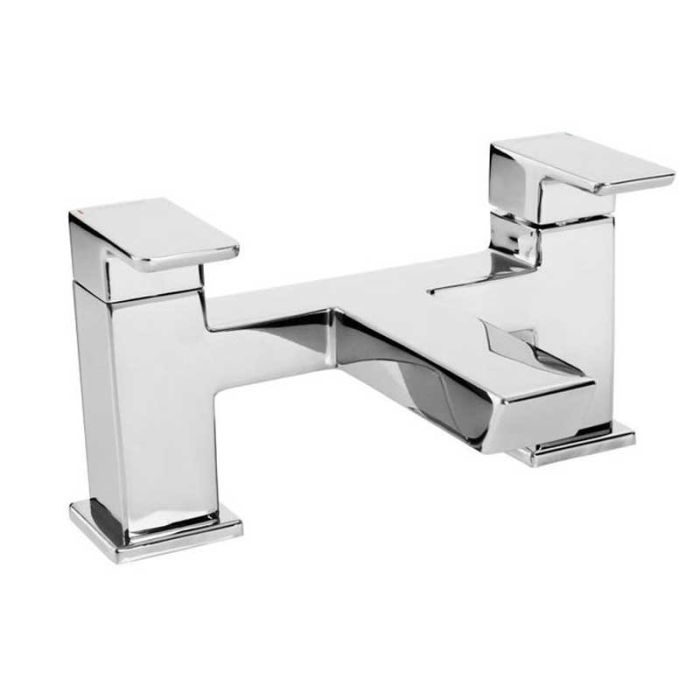

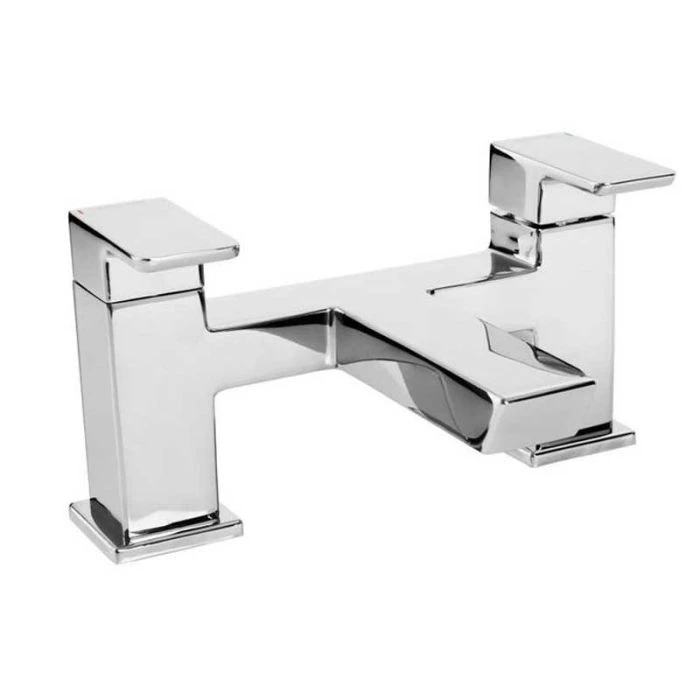

Cobalt Bath Filler Chrome

Specifications

• Measurements: (Height) 125mm (Depth) 165mm (Width) 233mm
• Spout Measurements: (Projection) 104mm (Height) 51mm
• Base Diameter: 53mm
• Main Construction Material: Brass
• Mount Type: Deck
• Handle Type: Lever
• Connection Inlet: 3/4”BSP
• Connection Outlet: M24 Flow Straightener
• Number of Tap Holes: 2
• Valve/Cartridge Type: 3/4” Ceramic Disc Valve
• Plumbing System Requirements: Suitable for all plumbing systems, ideally balanced
• Minimum Dynamic Pressure (bar): 0.3 bar
• Maximum Dynamic Pressure (bar): 5.0 bar
• Maximum Hot Water Temperature °C: 60°C
• Maximum Static Pressure (bar): 10 bar
• Flow Type: Single
• Isolation Included: No
• Finish: Chrome
• Approvals: WRAS Approved
• Range: Cobalt
• 10 Year Guarantee

Features:

• Long life 1/4 turn ceramic disc valves for added durability and smooth control.
• Robust metal fixing nut to secure the tap in place reducing the risk of loosening over time.
• A hard-wearing, flawless, scratch resistant chrome finish that lasts for years. Salt spray tested to ensure added durability.
• 10 year parts and 1 year labour guarantee for peace of mind.
• Co-ordinating Bathroom taps, Recess shower and Accessories available.

Flow Rates (l/min)

• 0.3 bar - 35.1 (l/min)
• 0.5 bar - 45.3 (l/min)
• 1 bar - 64 (l/min)
• 2 bar - 90.5 (l/min)
• 3 bar - 110.9 (l/min)
• 5 bar - 143.20 (l/min)
