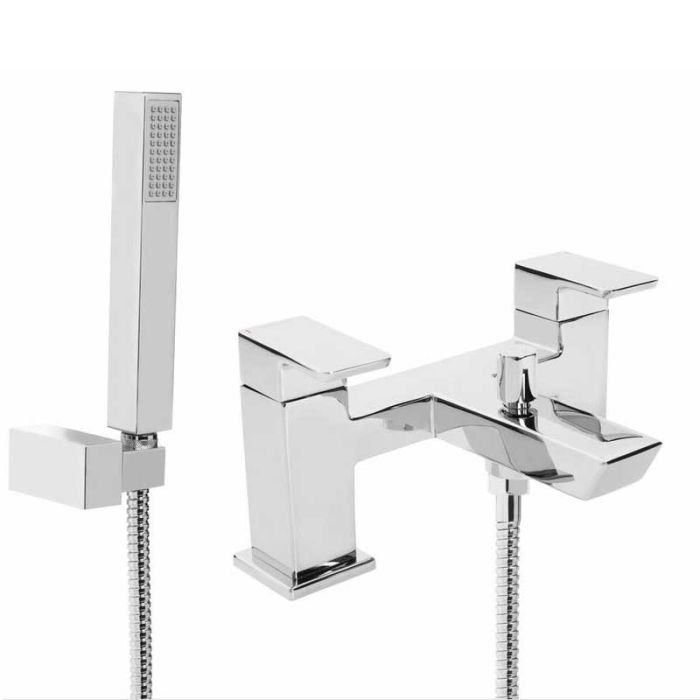

Cobalt Bath Shower Mixer Chrome

Specifications

• Measurements: (Height) 123mm (Width) 233mm (Depth) 163mm
• Spout Measurements: (Height) 52mm (Projection) 105mm
• Pipe Centres: 180mm
• Finish: Chrome
• Main Construction Material: Brass
• Mount Type: Deck Mounted
• Handle Type: Lever Handles
• Connection Inlet: 3/4”BSP
• Connection Outlet: Anti-Splash
• Number of Tap Holes: 2
• Valve/Cartridge Type: 1/4 Turn 3/4” Ceramic Disc Valve
• Plumbing System Requirements: Suitable for all plumbing systems
• Minimum Dynamic Pressure (bar): 0.3 bar
• Maximum Dynamic Pressure (bar): 5.0 bar
• Maximum Hot Water Temperature °C: 65°C
• Maximum Static Pressure (bar): 10 bar
• Flow Type: Single Flow
• Isolation Included: No
• Approvals: WRAS Approved
• Range: Cobalt

Features:

• Long life and easy to use 1/4 turn ceramic disc valves
• Metal back nuts for added durability
• Includes 1.5m hose, rub-clean anti-limescale handset and wall bracket
• Minimum working pressure of 0.3 bar

Flow Rates Through Bath Filler (l/min)

• 0.3 bar - 25.8 (l/min)
• 0.5 bar - 40.8 (l/min)
• 1 bar - 57.7 (l/min)
• 2 bar - 81.6 (l/min)
• 3 bar - 99.9 (l/min)
• 5 bar - 129 (l/min)

Flow Rates Through Handset (l/min)

• 0.3 bar - 4.3 (l/min)
• 0.5 bar - 6.8 (l/min)
• 1 bar - 9.6 (l/min)
• 2 bar - 13.6 (l/min)
• 3 bar - 16.7 (l/min)
• 5 bar - 21.6 (l/min)
