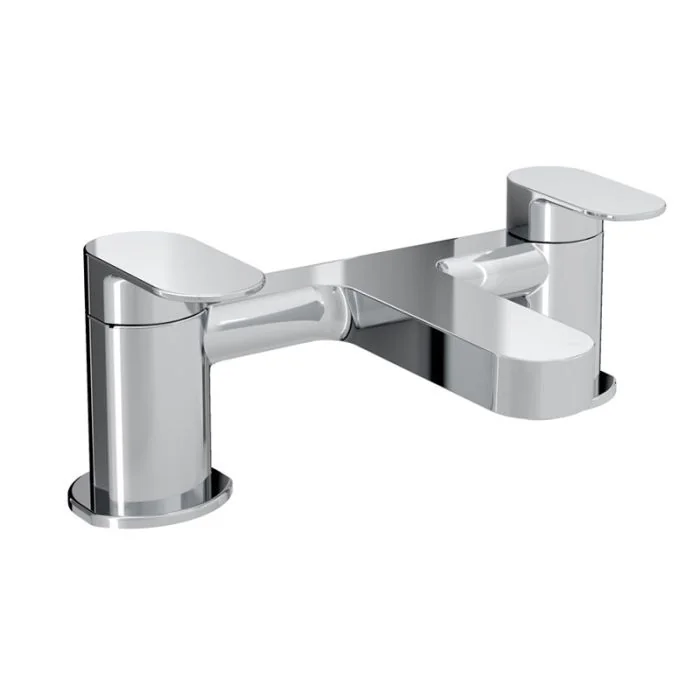

Frenzy Bath Filler

Specifications

• Measurements: (Height) 113mm (Depth) 151mm (Width) 233mm
• Spout Measurements: (Projection) 105mm (Height) 46mm
• Pipe Centres: 180mm
• Tap width at top: (width) 38mm
• Main Construction Material: Brass
• Mount Type: Deck
• Handle Type: Lever
• Connection Inlet: 3/4”BSP
• Connection Outlet: M28 Flow Straightener
• Number of Tap Holes: 2
• Valve/Cartridge Type: 3/4” Ceramic Disc Valve
• Plumbing System Requirements: Suitable for all plumbing systems, ideally balanced
• Minimum Dynamic Pressure (bar): 0.2 bar
• Maximum Dynamic Pressure (bar): 5.0 bar
• Maximum Hot Water Temperature °C: 60°C
• Maximum Static Pressure (bar): 10 bar
• Flow Type: Single
• Isolation Included: No
• Finish: Chrome
• Range: Frenzy
• Approvals: WRAS Approved

Features:

• Long life and easy to use 1/4 turn ceramic disc valves
• Metal back nuts for added durability
• Easy-to-use lever handles
• Chrome plated to BS EN 8

Flow Rates (l/min)

• 0.2 bar - 29.5 (l/min)
• 0.5 bar - 48.6 (l/min)
• 1 bar - 68.3 (l/min)
• 2 bar - 97.6 (l/min)
• 3 bar - 119.5  (l/min)
• 5 bar - 154.2 (l/min)
