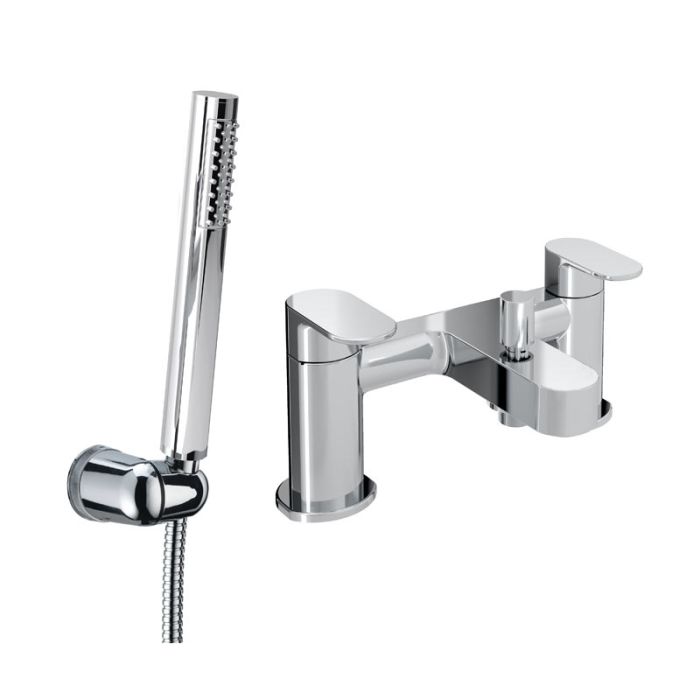

Frenzy Bath Shower Mixer

Specification

• Measurements: (Height) 113mm (Width) 233mm (Depth) 150m
• Spout Measurements: (Height) 46mm (Projection) 105mm
• Pipe Centres: 180mm
• Finish: Chrome
• Main Construction Material: Brass
• Mount Type: Deck Mounted
• Handle Type: Lever Handles
• Connection Inlet: G3/4”
• Connection Outlet: M28 Flow Straightener
• Number of Tap Holes: 2
• Valve/Cartridge Type: 1/4 Turn 3/4” Ceramic Disc Valve
• Plumbing System Requirements: Suitable for all plumbing systems
• Supplied with rub clean handset, 1.5m shower hose and wall bracket
• Minimum Dynamic Pressure (bar): 0.3 bar
• Maximum Dynamic Pressure (bar): 5.0 bar
• Maximum Hot Water Temperature °C: 65°C
• Maximum Static Pressure (bar): 10 bar
• Flow Type: Single Flow
• Isolation Included: No
• Range: Frenzy
• Approvals: WRAS Approved

Features

• Long life and easy to use 1/4 turn ceramic disc valves
• Metal back nuts for added durability
• Includes 1.75m hose, rub-clean anti-limescale handset and wall bracket
• Chrome plated to BS EN 248

Flow rates (l/min) Through Bath Filler

• 0.3 bar - 11.2 (l/min)
• 0.5 bar -  14.5 (l/min)
• 1 bar - 20.4 (l/min)
• 2 bar - 28.9 (l/min)
• 3 bar - 35.4 (l/min)
• 5 bar - 45.7 (l/min)

Flow rates (l/min) Through Handset

• 0.3 bar - 4.9  (l/min)
• 0.5 bar - 6.3 (l/min)
• 1 bar - 8.9  (l/min)
• 2 bar - 12.6 (l/min)
• 3 bar - 15.4  (l/min)
• 5 bar - 19.9 (l/min)
