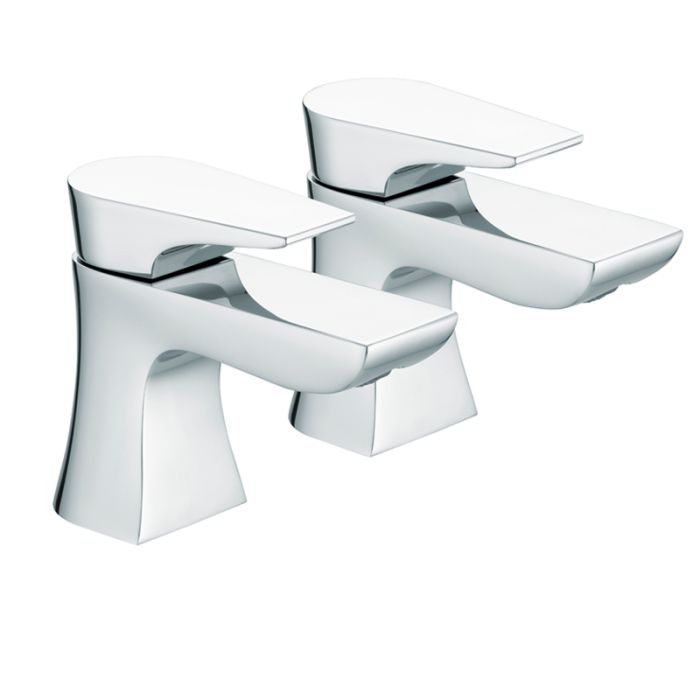

Hourglass Basin Taps

Made for the Hourglass range, the Bristan Hourglass Basin Taps (HOU1/2C) are practical basin taps with a clear design identity. They give separate hot and cold water control for traditional basin installations. Key features include main construction material: brass, handle type: lever, valve/cartridge type: 1/2" ceramic disc valve - ﾼ turn.

- Give separate hot and cold water control for traditional basin installations
- Soft curved design with a refined contemporary feel
- Main Construction Material: Brass
- Mount Type: Deck
- Handle Type: Lever
- Valve/Cartridge Type: 1/2" Ceramic Disc Valve - ﾼ turn
- Finish: Chrome
- Long life and easy to use 1/4 turn ceramic disc valves
- Chrome plated to BS EN 248
- Chrome finish
- Ceramic disc valve technology
- Lever handle operation
- Brass construction
- Metal back nuts for secure fitting

Specifications
- Measurements: (Height) 90mm (Depth) 120mm
- Spout Measurements: (Height) 50mm (Projection) 80mm
- Base Diameter: 45mm
- Connection Inlet: 1/2" BSP
- Connection Outlet: M24 Coin-Slot Aerator
- Minimum Dynamic Pressure (bar): 0.2 bar
- Maximum Dynamic Pressure (bar): 5.0 bar
- Maximum Hot Water Temperature ﾰ: 65ﾰ
- Maximum Static Pressure (bar): 10 bar
- Flow Rates (l/min)

Flow Rates
- 0.2 bar: 7.6 (l/min)
- 0.5 bar: 12.1 (l/min)
- 1 bar: 17.1 (l/min)
- 2 bar: 24.2 (l/min)
- 3 bar: 29.6 (l/min)
- 5 bar: 38.2 (l/min)
