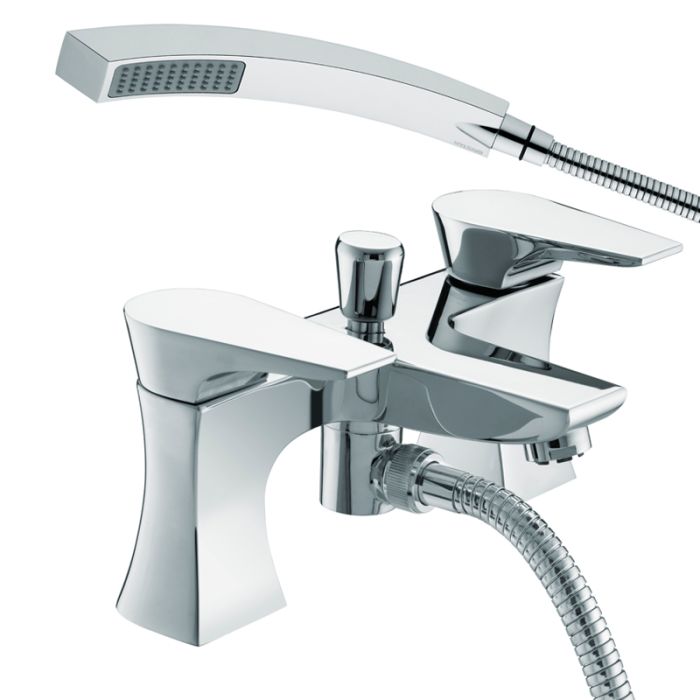

Hourglass Bath Shower Mixer Chrome

The Bristan Hourglass Bath Shower Mixer Chrome (HOUBSMC) combines soft curved design with a refined contemporary feel with the practical function of a bath shower mixer tap. It combines bath filling with a shower handset for flexible bathing and rinsing, making it suitable for bathroom upgrades and new installations. Key features include main construction material: brass, handle type: lever, valve/cartridge type: 3/4" ceramic disc valve.

- Combines bath filling with a shower handset for flexible bathing and rinsing
- Soft curved design with a refined contemporary feel
- Main Construction Material: Brass
- Mount Type: Deck
- Handle Type: Lever
- Valve/Cartridge Type: 3/4" Ceramic Disc Valve
- Finish: Chrome
- A chrome finish that will make a statement in any bathroom
- Long life and easy to use 1/4 turn ceramic disc valves
- Chrome finish
- Ceramic disc valve technology
- Lever handle operation
- Brass construction
- Metal back nuts for secure fitting
- Shower handset included

Specifications
- Measurements: (Height) 110mm (Depth) 135mm (Width) 230mm
- Spout Measurements: (Height) 55mm (Projection) 95mm
- Pipe Centres: 180mm
- Connection Inlet: 3/4" BSP
- Connection Outlet: G1/2"
- Minimum Dynamic Pressure (bar): 0.2 bar
- Maximum Dynamic Pressure (bar): 5.0 bar
- Maximum Hot Water Temperature ﾰ: 65ﾰ
- Maximum Static Pressure (bar): 10 bar
- Flow Type: Single
- Flow Rates Through Bath Filler (l/min)
- 3 bar - 89.8 (l/mn)
- Flow Rates Through Handset (l/min)

Flow Rates
- 0.2 bar - 23.2 (l/min)
- 0.5 bar - 36.7 (l/min)
- 1 bar - 51.8 (l/min)
- 2 bar - 73.3 (l/min)
- 5 bar - 115.9 (l/min)
