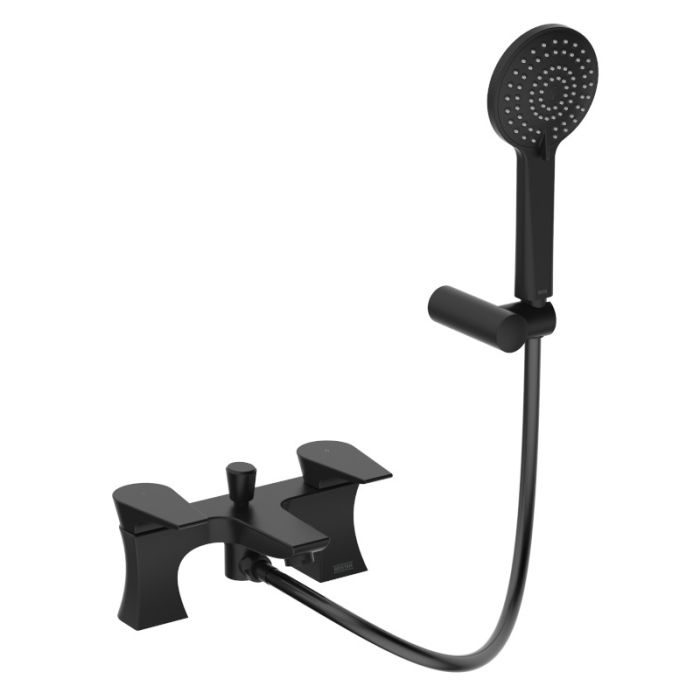

Hourglass Bath Shower Mixer Matt Black

Specifications

• Measurements: (Height) 110mm (Depth) 135mm (Width) 230mm
• Spout Measurements: (Height) 55mm (Projection) 95mm
• Pipe Centres: 180mm
• Main Construction Material: Brass
• Mount Type: Deck
• Handle Type: Lever
• Connection Inlet: 3/4” BSP
• Connection Outlet: G1/2”
• Number of Tap Holes: 2
• Valve/Cartridge Type: 3/4” Ceramic Disc Valve
• Plumbing System Requirements: Suitable for all plumbing systems
• Minimum Dynamic Pressure (bar): 0.2 bar
• Maximum Dynamic Pressure (bar): 5.0 bar
• Maximum Hot Water Temperature °C: 65°C
• Maximum Static Pressure (bar): 10 bar
• Flow Type: Single
• Isolation Included: No
• Finish: Matt black
• Product Certifications: WRAS

Features:

• You really can count on Bristan taps as they are designed, engineered and tested to last with our precise glide and secure fix components plus a modern black finish, all under a 10 Year guarantee for peace of mind
• A black finish that will make a statement in any bathroom
• Long life and easy to use 1/4 turn ceramic disc valves
• Metal back nuts for added durability
• Includes 1.75m hose, rub-clean anti-limescale handset and wall bracket

Flow Rates Through Bath Filler (l/min)

• 0.2 bar - 23.2 (l/min)
• 0.5 bar - 36.7 (l/min)
• 1 bar - 51.8 (l/min)
• 2 bar - 73.3 (l/min)
• 3 bar - 89.8 (l/mn)
• 5 bar - 115.9 (l/min)

Flow Rates Through Handset (l/min)

• 0.2 bar - 6.3 (l/min)
• 0.5 bar - 9.9 (l/min)
• 1 bar - 14 (l/min)
• 2 bar - 19.8 (l/min)
• 3 bar - 24.3 (l/min)
• 5 bar - 31.4 (l/min)
