Hourglass Shower Pack Chrome
Special Price
£417.00
Regular Price
£556.00
SKU
HOURGLASSSHWRPK

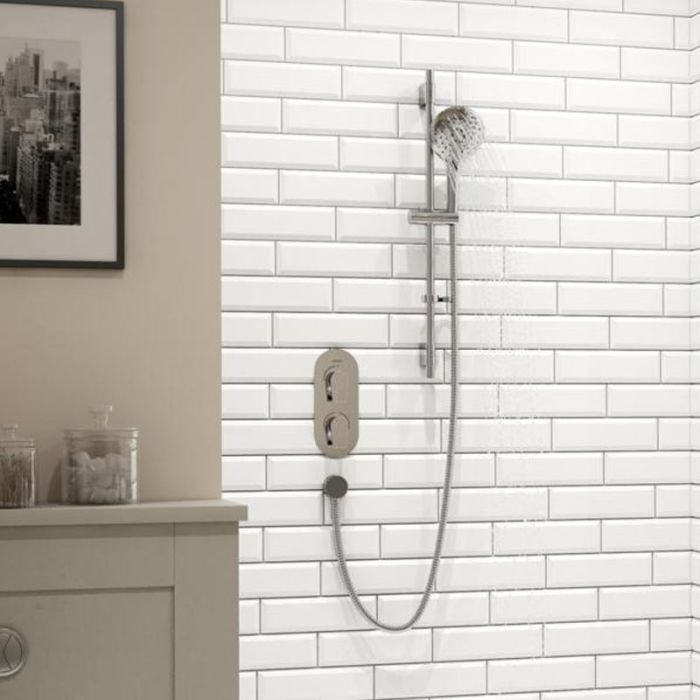

Bristan Hourglass Concealed Dual Control Shower Pack in Chrome (including shower valve, riser rail, handset, hose and fixed shower head) (HOURGLASS SHWR PK)
- Riser Measurements: (Height) 725mm (Width) 115mm (Depth) 80mm (Mounting Centres) 665mm
- Valve Measurements: (Height) 200mm (Width) 100mm
- Arm Measurements: (Length) 370mm (Projection) 360mm (Mounting Plate) 55mm
- Handset Measurements: (Height) 250mm (Width) 110mm
- Head Diameter: 200mm
- Main Construction Material: Brass; ABS
- No of Controls: 2
- Shower Type: Dual Control
- Shower Head Type: Fixed Head; Adjustable
- Valve/Cartridge Type: Thermostatic Cartridge & 3/4” Ceramic Disc Valve
- Maximum Hot Water Supply Temperature OC: 65
- Maximum Static Pressure: (bar) 10
- Plumbing System Suitability: Suitable for all plumbing systems
- Maximum Dynamic Pressure (bar): 0.2
- Maximum Static Pressure (bar): 5.0
- Connection Inlet: 15mm Compression
- Connection Outlet: G 1/2”
- Isolation Valve Included: No
- Check Valve Included: Yes
- Finish: Chrome
Features:
- All in one box - pack includes shower valve with integral two outlet diverter, slimline 200mm round fixed head with shower arm, and shower kit with an adjustable riser rail plus a multi function handset and wall outlet.
- Rub clean handset and fixed head - limescale and debris build-up is quickly and easily removed by rubbing a finger or a cloth over the nozzles.
- Slim design recessed shower valve will fit into a cavity space as small as 35mm for hassle-free installation.
- Dual control - Flow and temperature are operated separately giving accurate control of both.
- Cartridge can be accessed from the front for easy servicing.
- 15mm inlet connections.
- Fitting depth including plasterboard and tiles is 60mm - 75mm.
- 5-year parts and 1 year labour guarantee for peace of mind.
- Co-ordinating range of Bathroom taps available.
| Basic Dimensions | Riser Measurements: (Height) 725mm (Width) 115mm (Depth) 80mm (Mounting Centres) 665mm |
|---|---|
| Approvals | WRAS Approved |
| EAN Number | 5014868045382 |
| Guarantee | Lifetime |
| Pipe Centres | Fixed at 150mm |
| Manufacturer | Bristan |
| Return period | 14 days |
