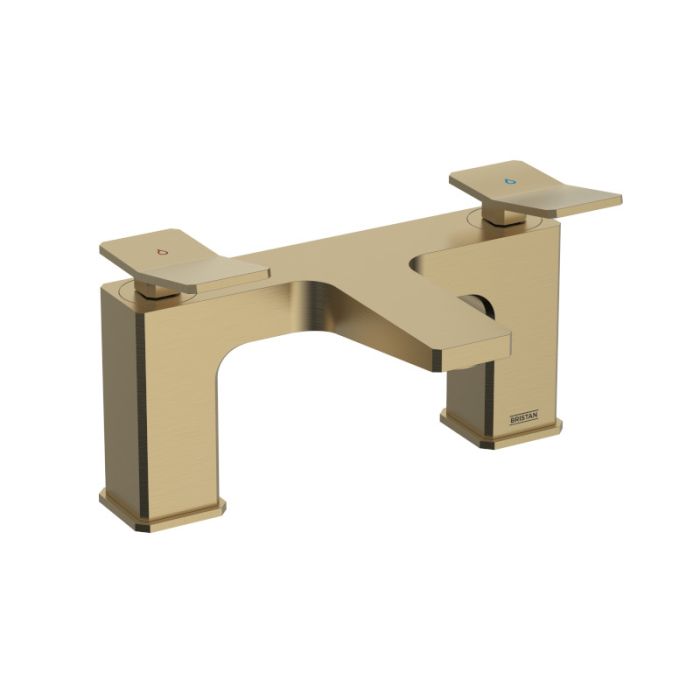

Tangram Bath Filler Brushed Brass

The Bristan Tangram Bath Filler Brushed Brass (TANBFBB) is a bath filler tap designed for reliable everyday bathroom water control. It fills the bath cleanly while coordinating with matching basin brassware and uses Bristan bathroom brassware styling to suit its wider collection. Key features include lever: twin lever handle, finish: brushed brass, material: solid brass.

- Fills the bath cleanly while coordinating with matching basin brassware
- Bristan bathroom brassware styling
- Lever: Twin lever handle
- Finish: Brushed brass
- Material: Solid brass
- Valve/Cartridge Type: 3/4" Short Stem Ceramic Disc Valve
- Long life 1/4 turn ceramic disc valves for added durability and smooth control
- On-trend brushed brass finish to make a statement in your bathroom
- Also available in black and chrome
- Chrome finish
- Ceramic disc valve technology
- Lever handle operation
- Brass construction

Specifications
- Measurements: (Height) 135mm (Width) 225mm (Depth) 145mm
- Spout Dimensions: (Projection) 105mm, (Height) 90mm
- Pipe Centres: 180mm
- Base Diameter: 45mm
- Connection Inlet: 3/4" BSP
- Connection Outlet: M24 Recessed Honeycomb Aerator
- Minimum Operating Pressure: 0.2 bar (Low pressure)
- Flow Rates (l/min)

Flow Rates
- 0.2 bar - 17.9 (l/min)
- 0.5 bar - 30.2 (l/min)
- 1 bar - 43.7 (l/min)
- 2 bar - 63 (l/min)
- 3 bar - 77.2 (l/min)
- 5 bar - 99.7 (l/min)
