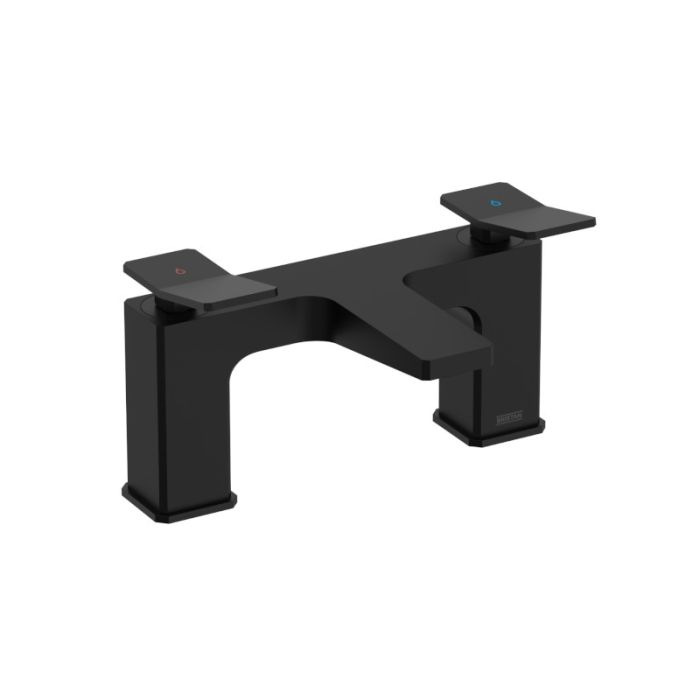

Tangram Bath Filler Matt Black

Specification

• Measurements: (Height) 135mm (Width) 225mm (Depth) 145mm
• Spout Dimensions: (Projection) 105mm, (Height) 90mm
• Pipe Centres: 180mm
• Base Diameter: 45mm
• Connection Inlet: 3/4” BSP
• Connection Outlet: M24 Recessed Honeycomb Aerator
• Lever: Twin lever handle
• Finish: Matt black
• Material: Solid brass
• Valve/Cartridge Type: 3/4” Short Stem Ceramic Disc Valve
• Plumbing System Requirements: Suitable for all plumbing systems
• Minimum Operating Pressure: 0.2 bar (Low pressure)
• Manufacturer: Bristan
• Range: Tangram
• 10-year parts and 1 year labour guarantee for peace of mind.

Features

• Long life 1/4 turn ceramic disc valves for added durability and smooth control
• Robust metal fixing nut to secure the tap in place reducing the risk of loosening over time
• On-trend brushed brass finish to make a statement in your bathroom
• Also available in brass and chrome
• Co-ordinating Bathroom taps available.

Flow Rates (l/min)

• 0.2 bar - 17.9 (l/min)
• 0.5 bar - 30.2 (l/min)
• 1 bar - 43.7 (l/min)
• 2 bar - 63 (l/min)
• 3 bar - 77.2 (l/min)
• 5 bar - 99.7
