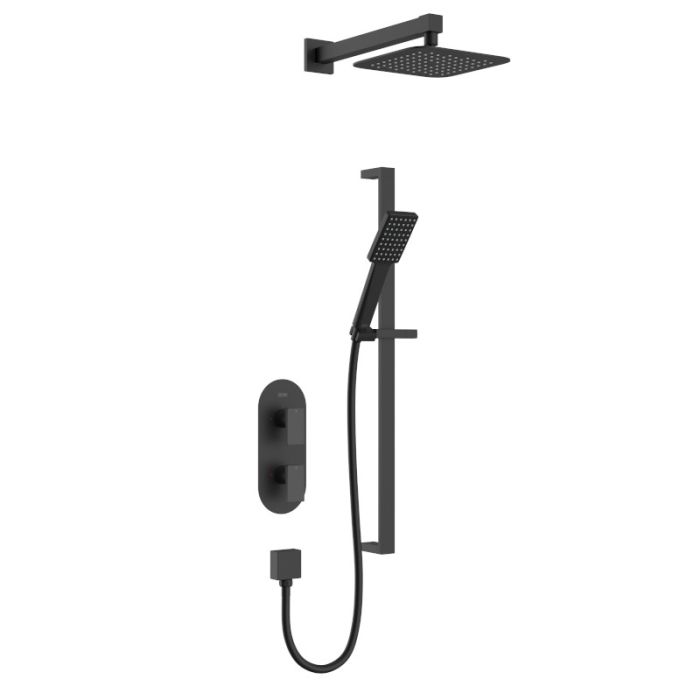

Tangram 2-Way Recessed Shower Valve Kit Matt Black

• Shower Valve Measurements: (Height) 240mm (Width) 100mm
• Shower Valve Mounting: Recessed
• Number of Outlets: 2
• Riser Rail Measurements: (Height) 700mm (Width) 130mm (Centres) 690mm
• Wall Outlet Measurements: (Height) 50mm (Width) 55mm
• Wall Outlet Fitting: G1/2"
• Handset: Single function handset (240mm x 65mm)
• Hose: 1.5m
• Shower Head: 200mm square head
• Shower Arm: 330mm wall mounted square arm (G1/2" inlet & outlet)
• Valve/Cartridge Type: Thermostatic cartridge & 3/4” ceramic disc valve
• Finish: Matt black
• Material: Brass
• Minimum Operating Pressure: 0.2Bar (Low pressure)
• Suitable for use with low, medium and high pressure systems
• Brand: Bristan
• Range: Tangram
• Warranty: 5-year parts and 1 year labour guarantee for peace of mind

Features

• All in one box - pack includes shower valve with integral two outlet diverter, slimline 200mm square fixed head with shower arm, and shower kit with an adjustable riser rail plus a single function handset and wall outlet
• Rub clean handset and fixed head - limescale and debris build-up is quickly and easily removed by rubbing a finger or a cloth over the nozzles
• Slim design recessed shower valve will fit into a cavity space as small as 35mm for hassle-free installation
• Dual control - Flow and temperature are operated separately giving accurate control of both
• Cartridge can be accessed from the front for easy servicing
• 15mm inlet connections
• Fitting depth including plasterboard and tiles is 60mm - 75mm
• Also available in chrome and brass
• Co-ordinating range of Bathroom taps available
