Prism Basin Mixer

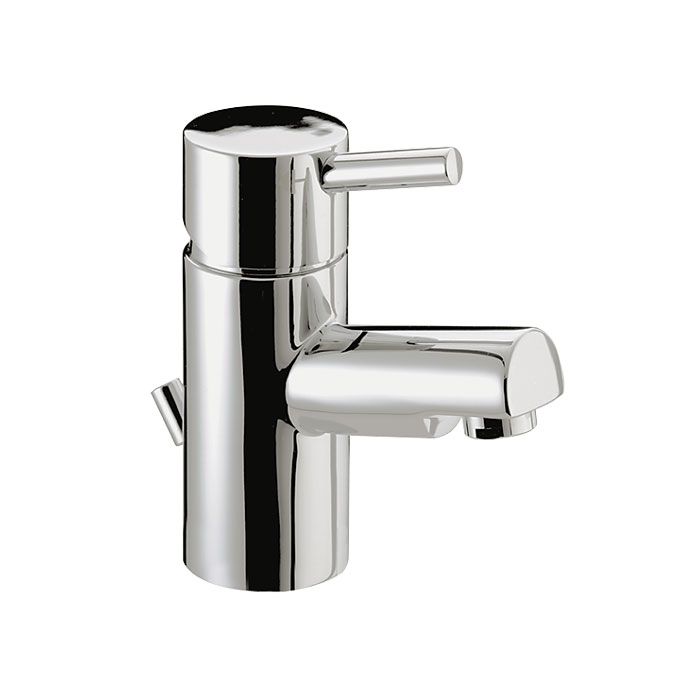

These taps and mixers have a very simple classic design throughout the range that would make them a fantastic option for refreshing any contemporay modern bathroom setting. The Prism monobloc basin mixer is only available in chrome plated finish as shown in the image.

Specification

• Measurements: (height) 140mm (depth) 137mm
• Spout Measurements: (projection) 100mm (height) 63mm
• Base Diameter: 50mm
• Waste: Clicker Waste Included
• Product Type: Bathroom Tap
• Main Construction Material: Brass
• Mount Type: Deck
• Handle Type: Lever
• Connection Inlet: 15 mm compression
• Connection Outlet: M24 51pm Limiter
• Number of Tap Holes: 1
• Valve/Cartridge Type: 40mm Ceramic Disc Valve
• Plumbing System Requirements: Suitable for all plumbing systems
• Minimum Dynamic Pressure (bar): 0.2 bar
• Maximum Dynamic Pressure (bar): 5 bar
• Maximum Hot Water Temperature °C: 65°C
• Maximum Static Pressure (bar): 10 bar
• Isolation Included: No
• Flow Type: Single Flow
• Range: Prism
• Approvals: WRAS Approved
• Guarantee: 10 years

Features

• Long life ceramic cartridge for added durability and ease of use
• Metal fixing nut for added durability
• Easy to use lever handle
• Includes Pop-up Waste

Flow Rate (l/min)

• 0.2 bar: 5  (l/min)
• 0.5 bar: 5  (l/min)
• 1 bar: 5  (l/min)
• 2 bar: 5  (l/min)
• 3 bar: 5  (l/min)
• 5 bar: 5  (l/min)
