Prism Shower Package Chrome

• Riser Measurements: (Height) 730mm (Width) 115mm (Depth) 80mm (Mounting Centres) 670mm
• Valve Measurements: (Height) 255mm (Width) 165mm
• Arm Measurements: (Length) 370mm (Projection) 360mm (Mounting Plate) 55mm
• Handset Measurements: (Height) 230mm (Width) 95mm
• Head Diameter: 200mm
• Main Construction Material: Brass; ABS
• No of Controls: 2
• Shower Type: Dual Control
• Shower Head Type: Fixed Head; Adjustable Riser Kit
• Valve/Cartridge Type: 35mm Thermostatic Cartridge
• Maximum Hot Water Supply Temperature OC: 65
• Maximum Static Pressure: (bar) 10
• Plumbing System Suitability: Suitable for all plumbing systems
• Maximum Dynamic Pressure (bar): 0.2
• Maximum Static Pressure (bar): 5.0
• Connection Inlet: 15mm Compression
• Connection Outlet: G 1/2”
• Isolation Valve Included: No
• Check Valve Included: Yes
• Finish: Chrome

Features:

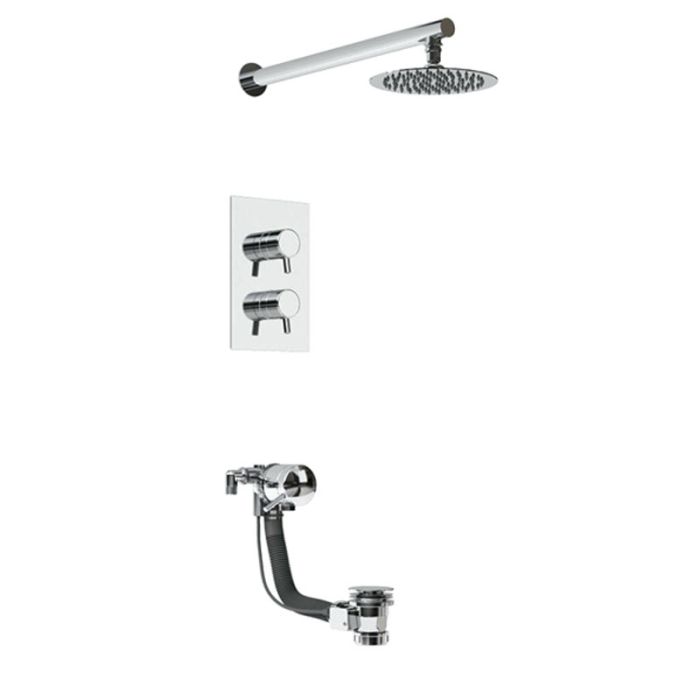

• This versatile shower pack contains a Chrome Prism shower valve with integral two outlet diverter. It has a slimline 200mm round fixed head with shower arm; and shower kit with an adjustable riser rail, multi function handset and outlet
• Rub-clean anti-limescale fixed head and handset
• The shower valve has been designed to fit in any UK wall cavity and therefore only needs a 35mm deep cavity space
• Dual control - flow and temperature are controlled separately
• Fully serviceable from the front
• Rub-clean anti-limescale fixed head and handset
• 15mm inlet connections
