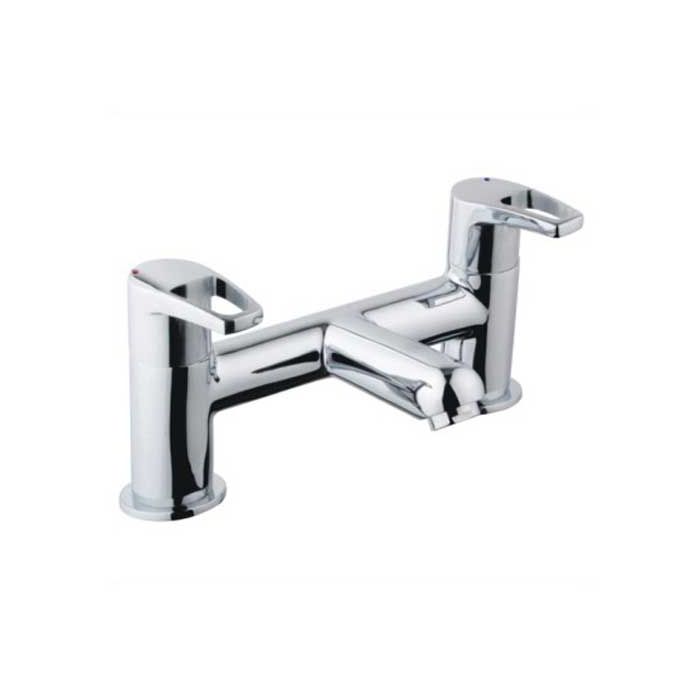

Smile Bath Filler

The Smile bathroom taps feature a simple easy to use single lever design which is complemented by the ceramic disc cartridges and valves utilised within this range. There are clear yet discreet blue and red indicators for a clear definition between hot and cold ensuring safe use.

The Smile deck mounted bath filler is only available in a chrome plated finish (as shown).

• Measurements: (Height) 125mm (Width) 230mm (Depth) 145mm
• Spout Dimensions: (Projection) 110mm, (Height) 45mm
• Product Type: Tap
• Main Construction Material: Brass
• Mount Type: Deck
• Handle Type: Lever
• Connection Inlet: 3/4” BSP
• Connection Outlet: flow straightener
• Number of Tap Holes: 2
• Valve/Cartridge Type: 3/4! Ceramic Disc Valve - 1/4 Turn
• Finish: Chrome
• Plumbing System Requirements: Suitable for all plumbing systems
• Minimum Dynamic Pressure (bar) : 0.2 bar (Low pressure)
• Maximum Dynamic Pressure (bar): 5 bar
• Maximum Hot Water Temperature °C: 65°C
• Maximum Static Pressure (bar): 10 bar
• Manufacturer: Bristan
• Range: Smile
• Approvals: WRAS Approved

Features

• Long life 1/4 turn ceramic disc valves for added durability and smooth control.
• Robust metal fixing nut to secure the tap in place reducing the risk of loosening over time.
• A hard-wearing, flawless, scratch resistant chrome finish that lasts for years. Salt spray tested to ensure added durability.
• 10 year parts and 1 year labour guarantee for peace of mind.
• Co-ordinating Bathroom taps and Accessories available

Flow Rates (l/min)

• 0.2 bar - 23.7 (l/min)
• 0.5 bar - 37.5 (l/min)
• 1 bar - 53 (l/min)
• 2 bar - 75 (l/min)
• 3 bar - 91.8 (l/min)
• 5 bar - 118.5 (l/min)
