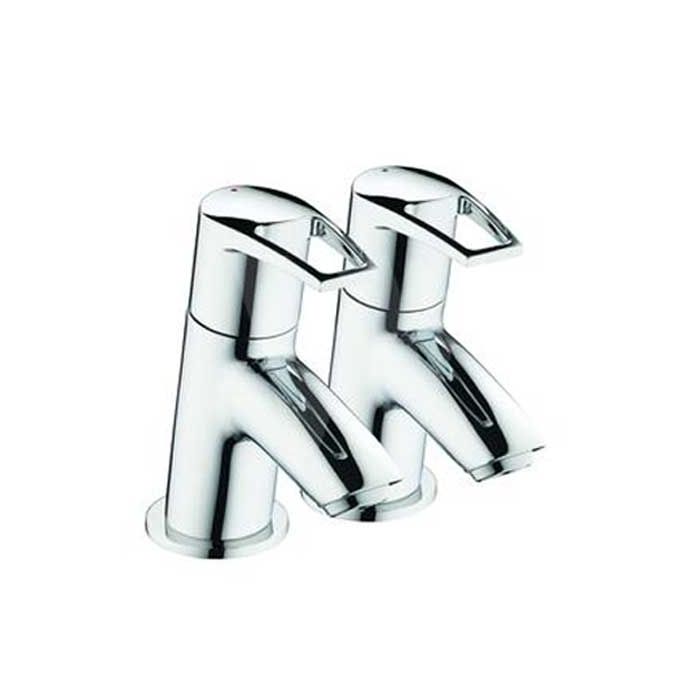

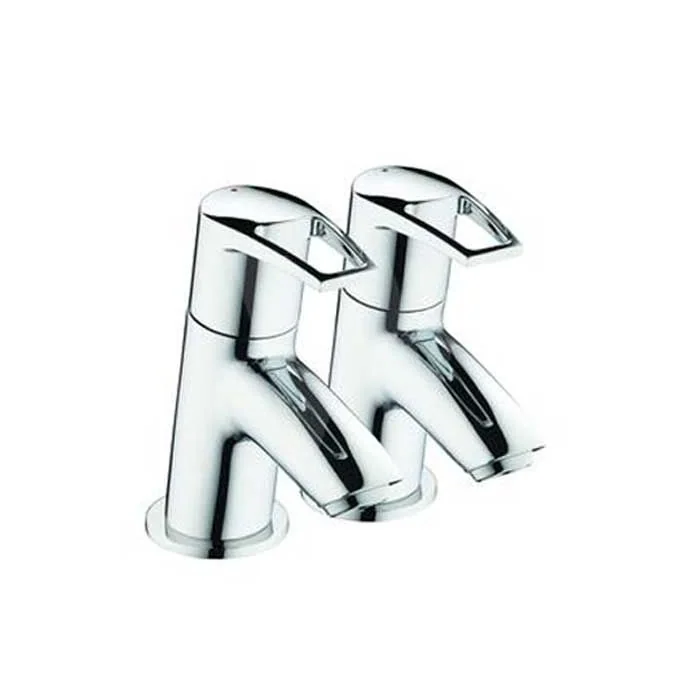

Smile Bath Taps

The Smile bathroom taps feature a simple easy to use looped lever design which is complemented by the ceramic disc cartridges and valves. There are clear yet discreet blue and red indicators for clear definition between hot and cold and safe use. These bath taps are supplied as a pair and are suitable for baths with two tap holes. The Smile bath taps are manufactured in solid brass and are only available in a chrome plated finish (as shown).

Specification

• Measurements: (height) 125mm (depth) 120mm
• Spout Measurements: (projection) 90mm (height) 40mm
• Base Diameter: 50mm
• Product Type: Bathroom Taps
• Main Construction Material: Brass
• Mount Type: Deck
• Handle Type: Lever
• Connection Inlet: 3/4” BSP
• Connection Outlet: M20 Flow Straightener
• Number of Tap Holes: 2
• Valve/Cartridge Type: 3/4” Ceramic Disc Valve ¼ Turn
• Plumbing System Requirements: Suitable for all plumbing systems
• Minimum Dynamic Pressure (bar): 0.2 bar
• Maximum Dynamic Pressure (bar): 5 bar
• Maximum Hot Water Temperature °C: 65°C
• Maximum Static Pressure (bar): 10 bar
• Isolation Included: No
• Range: Smile
• Approvals: WRAS Approved
• Guarantee: 10 years

Features

• Long life and easy to use 1/4 turn ceramic disc valves
• Metal back nuts for added durability
• Easy-to-use lever handles

Specify As Bristan “SM 3/4 C” Smile Basin Taps with loop handles, 3/4”BSP threaded inlet tails and ¼ turn ceramic disc valves. Product is WRAS Approved with a 5 year warranty. Manufacturer: Bristan Group Limited. Contact Details: [email protected]

Flow Rate (l/min)

• 0.2 bar: 9.9 (l/min)
• 0.5 bar: 25.3 (l/min)
• 1 bar: 36.2 (l/min)
• 2 bar: 51.1 (l/min)
• 3 bar: 61.9 (l/min)
• 5 bar: 103.2 (l/min)
